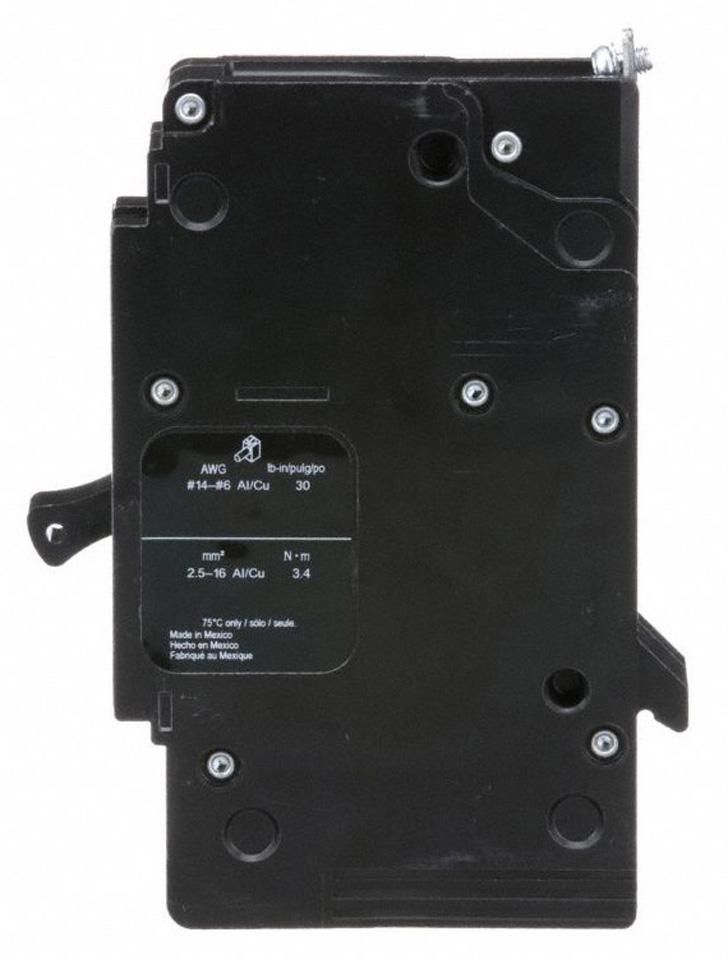

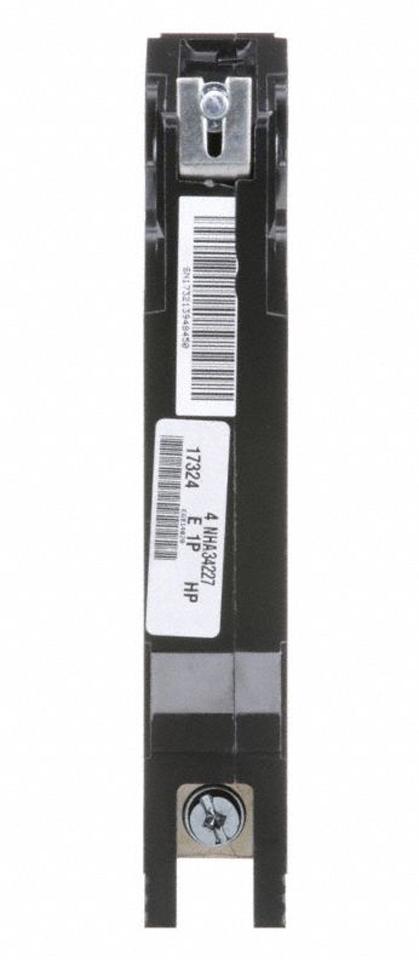

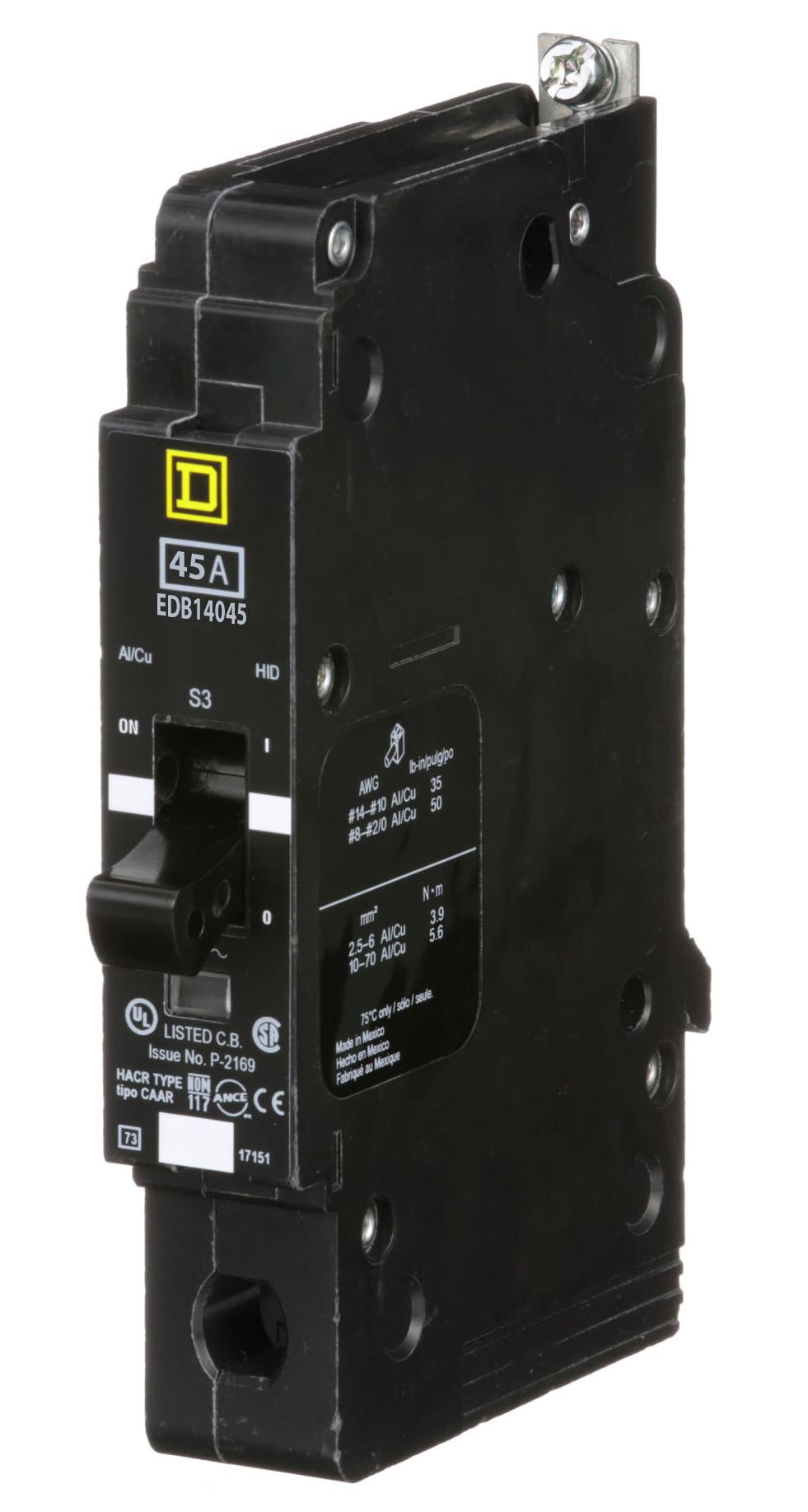

Name: EDB14045 - Square D - Molded Case Circuit Breaker
Brand: Circuitbreakersrus
Price: 95.99 USD
Availability:  instock

Home EDB14045 - Square D - Molded Case Circuit Breaker

EDB14045 - Square D - Molded Case Circuit Breaker

$95.99

Condition: New

Product variants

Quantity

Sku:

EDB14045

Tag:

Brand_ Square D ,

Breaker_ 1 Pole

Vendor:

Circuitbreakersrus

Type:

Molded Case Circuit Breaker

Overview

Product Specifications - EDB14045 - Square D Bolt-On Circuit Breaker

Part Number:

EDB14045
Manufacturer:

Schneider Electric / Square D
Family:

EDB Series
Pole:

1
Amp

45
Volt:

277
Phase:

1

Category:

Molded Case / 1-Pole
Connection:

Bolt-On
Type:

EDB
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

18kA@277V | 25kA@240V | 25kA@120V

Dimensions

Dimensions (HxWxD):

5.66" x 0.98" x 4.05"

Weight:

4lbs

Standards

Additional Details

Protection Type:

Short-Circuit / Overload
Module Type:

E-Frame
Trip Unit Rating:

875 Amp
Line Rated Current:

45 Amp
Maximum Operating Voltage:

277 V AC
Mounting Mode:

Bolt-On

Product Destination:

Square D NF Panelboard
Electrical Connection:

Aluminum Lugs
Holding Current:

270 Amp
Local Signaling:

Trip Indicator
Circuit Breaker Application:

HID-Rated / HACR-Rated
AWG Gauge:

AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper

Product Description - EDB14045 - Square D Bolt-On Circuit Breaker

Schneider Electric / Square D's EDB14045 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.

The EDB14045 is a 1-pole bolt-on circuit breaker, rated at 45A at a system voltage of 277V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

Square D's EDB14045 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12...AWG 6 (aluminum) and AWG 14...AWG 6 (copper).
