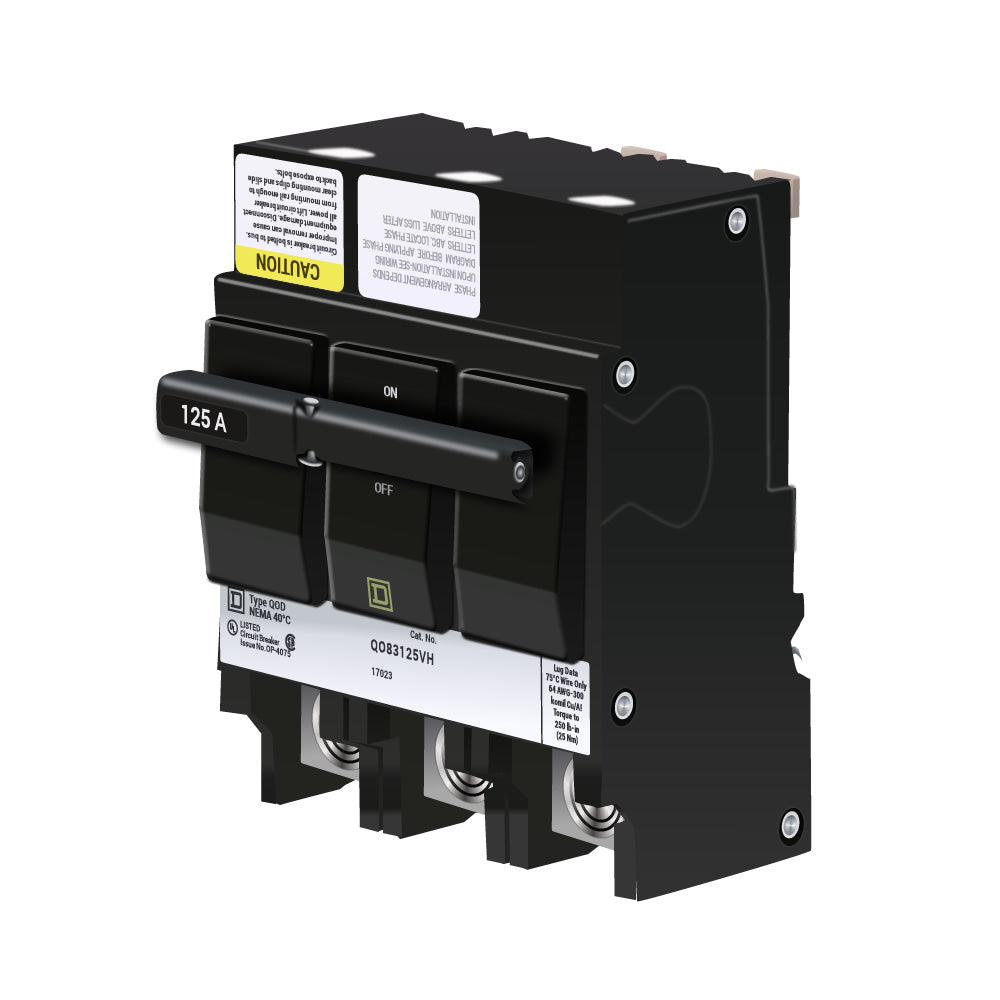

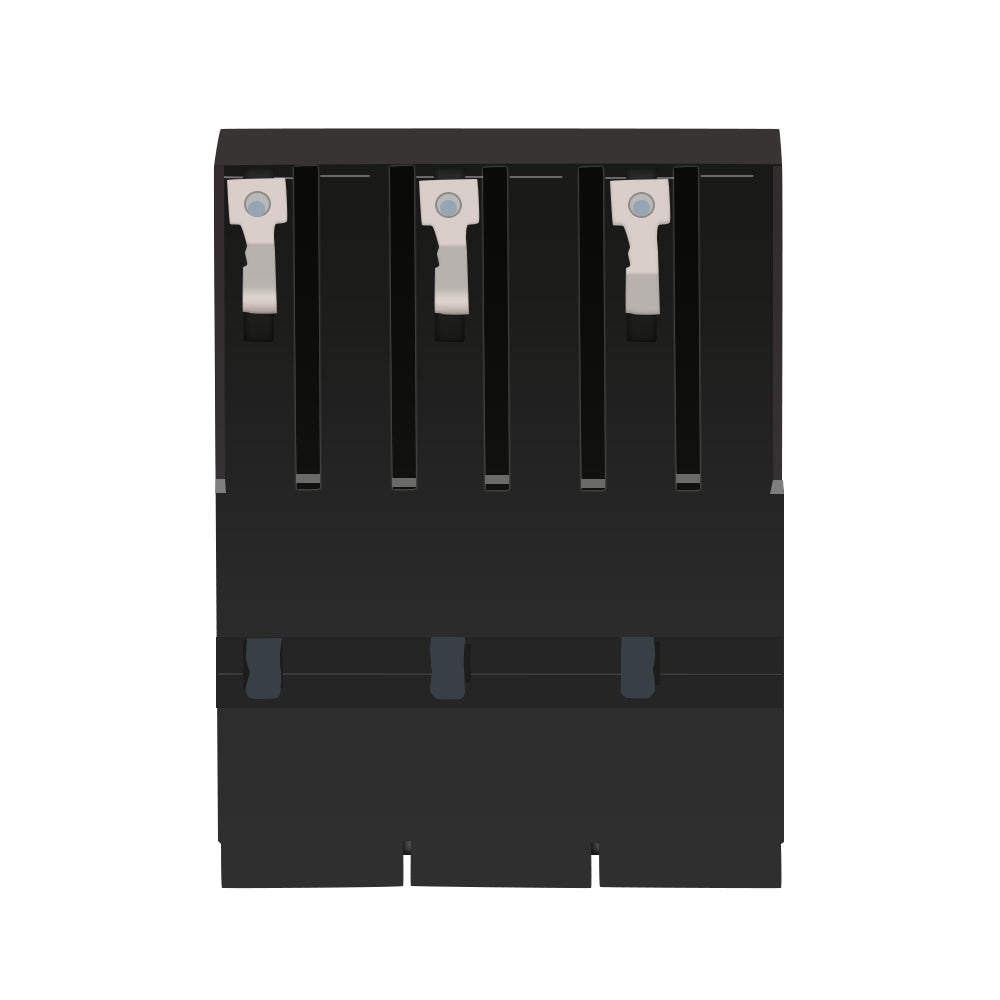

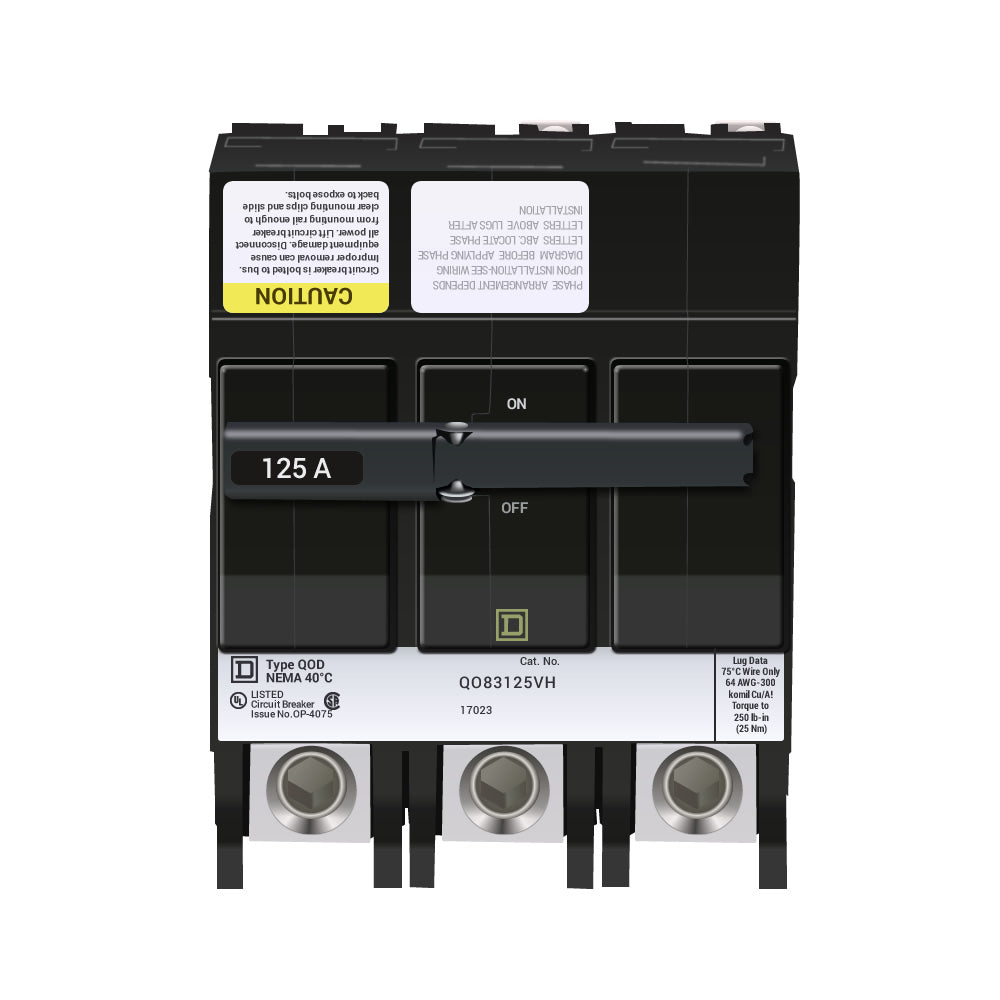

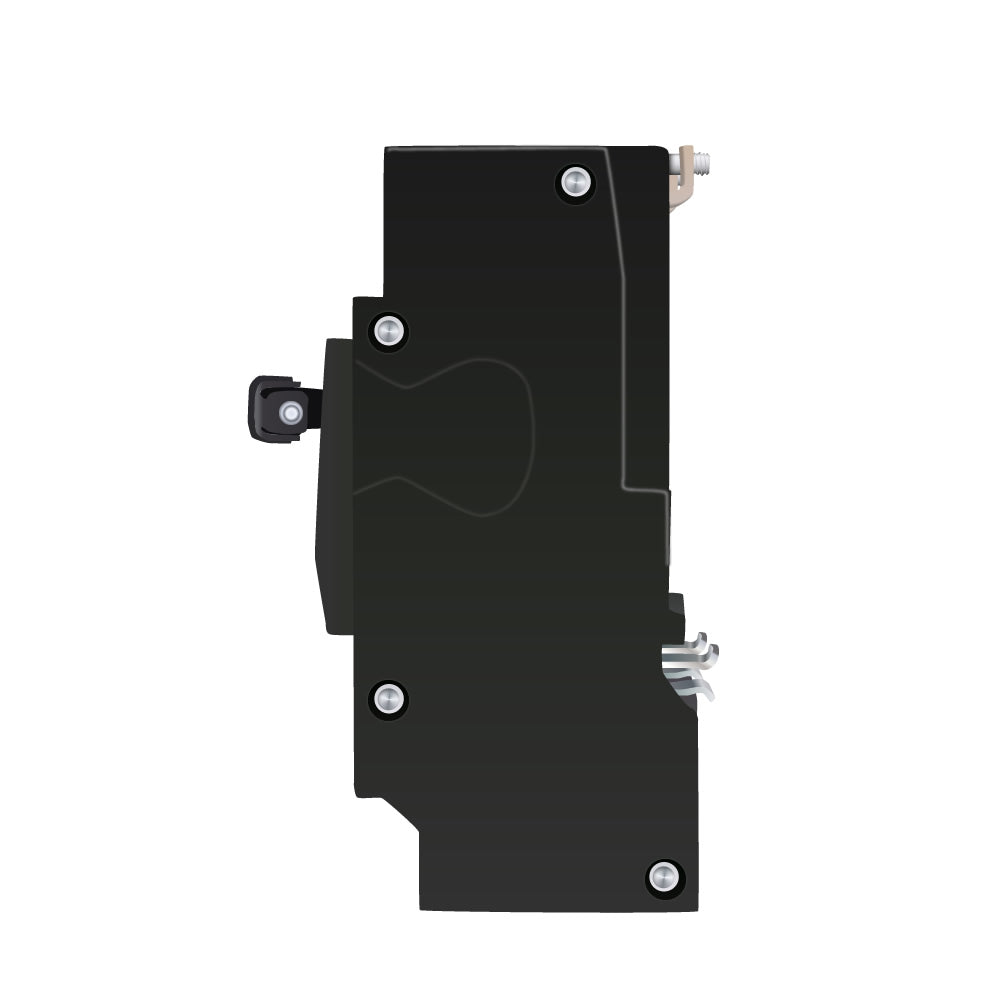

QOB3125VH - Square D Bolt-On 22 kA Breaker

Schneider Electric/Square D Miniature circuit breaker with Visi-Trip indicator has box-type lugs to accommodate 4 AWG - 300 Kcmil copper and aluminum wires. The 3-Pole circuit breaker has voltage rating of 240 VAC current rating of 125 Amps and short-circuit current rating of 22 kilo-Amps.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 125 A
• System Voltage: 120 V AC, 120/240 V AC, 240 V AC
• Mounting Type: Bolt-on
• Number of Poles: 3P
• Circuit Breaker Type: Standard
• Ratings: Not rated
• Electrical Connection: Box lugs
• Interrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
• Number of Panel Spaces: 6
• Wire Size: AWG 4...300 kcmil (copper or aluminium)
• Certifications: CSA, UL listed

• Ambient Rating: 104 Degree F (40 Degree C)

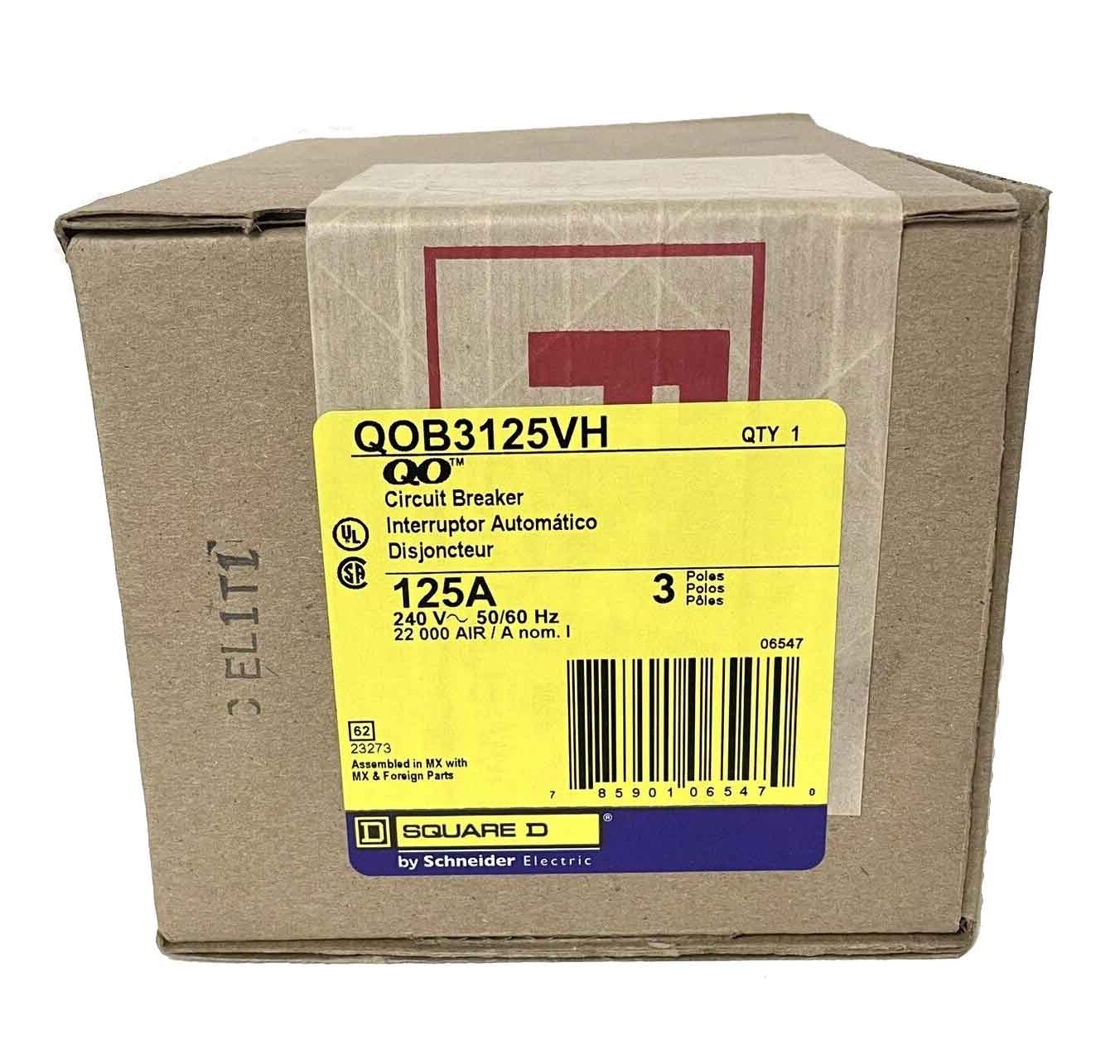

• Authentic Square D Product
• Dimensions (H x W x L): 5.72" x 4.5" x 4.9"
• 3 phase

Alt model: q0b3125vh
