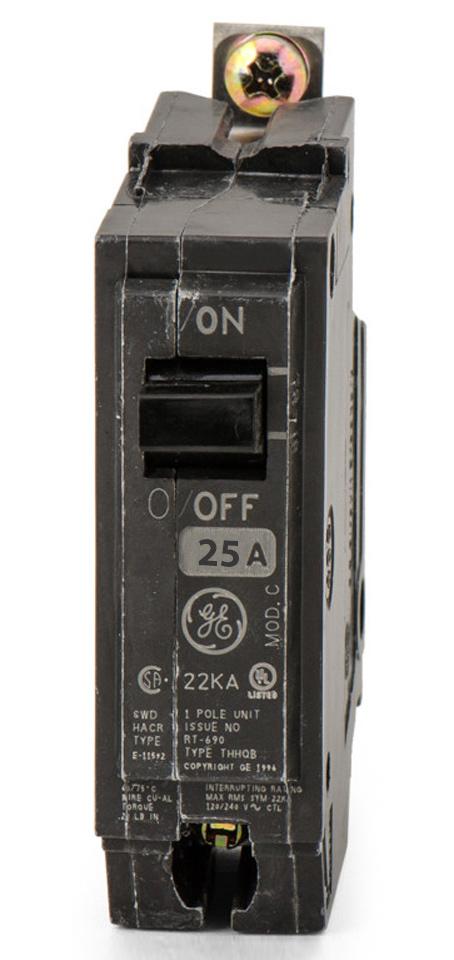

THHQB1125 - GE Bolt-On Molded Case Circuit Breaker

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications.

Specifications:

• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Amperage: 25 A
• System Voltage: 120 Vac, 120/240 Vac
• Poles: 1
• Trip Function: LI
• Continuous Current Rated: Standard
• 120 Vac Interrupting Rating: 22 KAIC
• 120/240 Vac Interrupting Rating: 22 KAIC
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Protective Relays: No
• Current Metering: No
• Special Markings: HACR
• GSA Compliance: No
• Authentic General Electric Product
