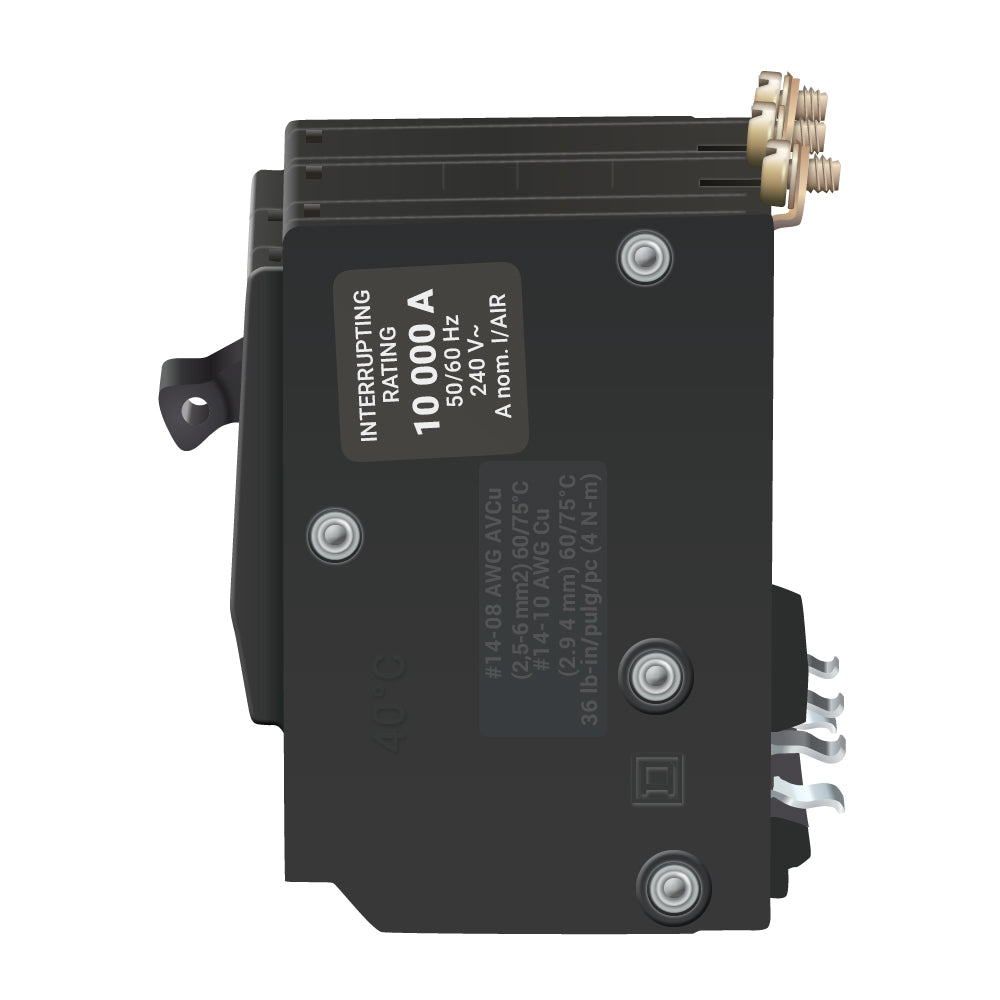

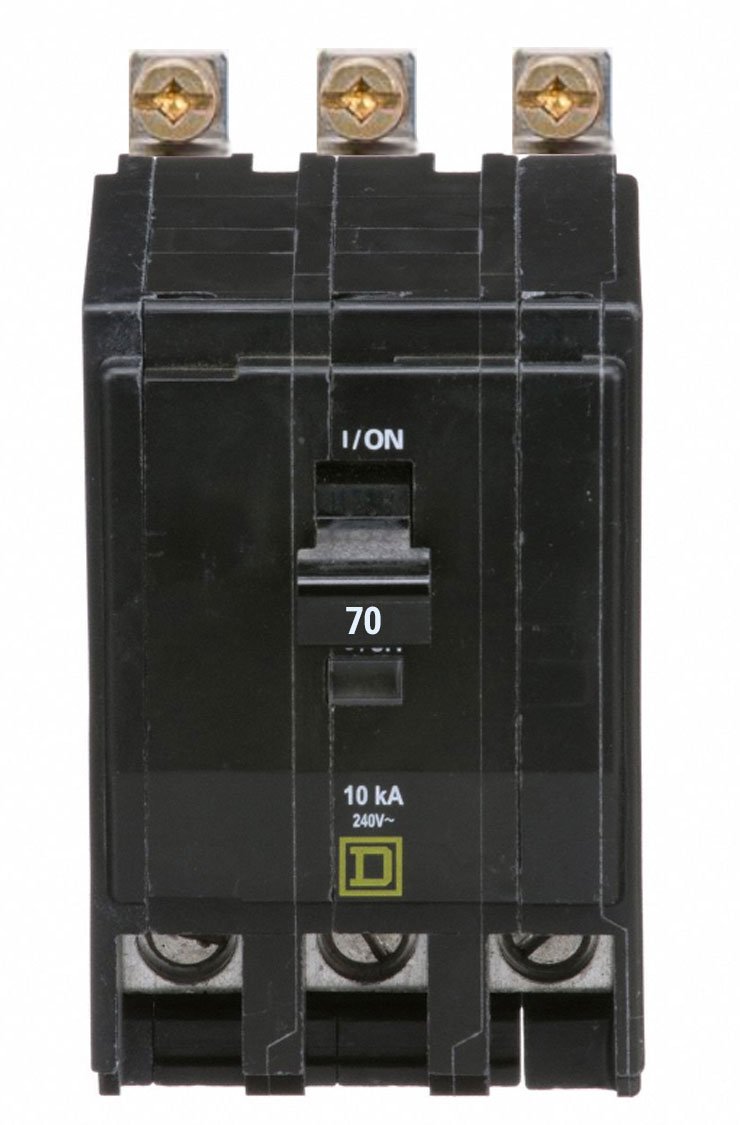

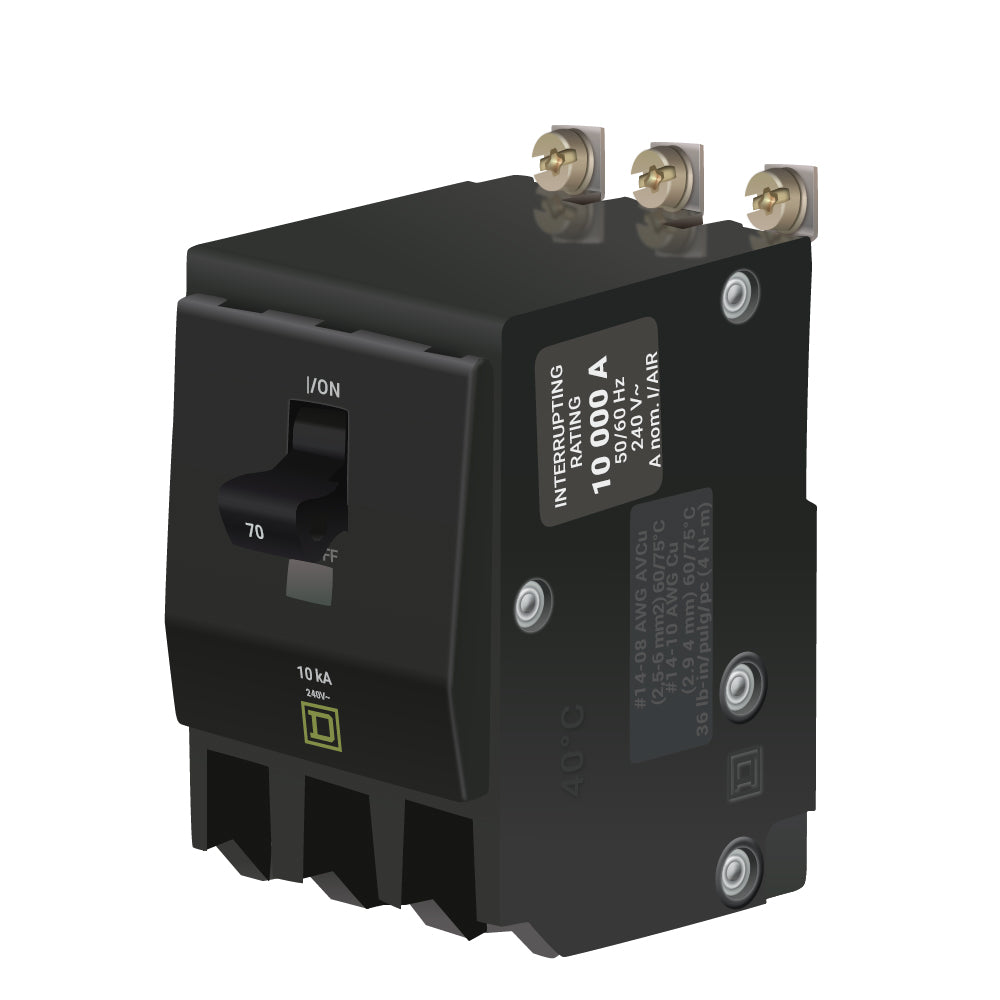

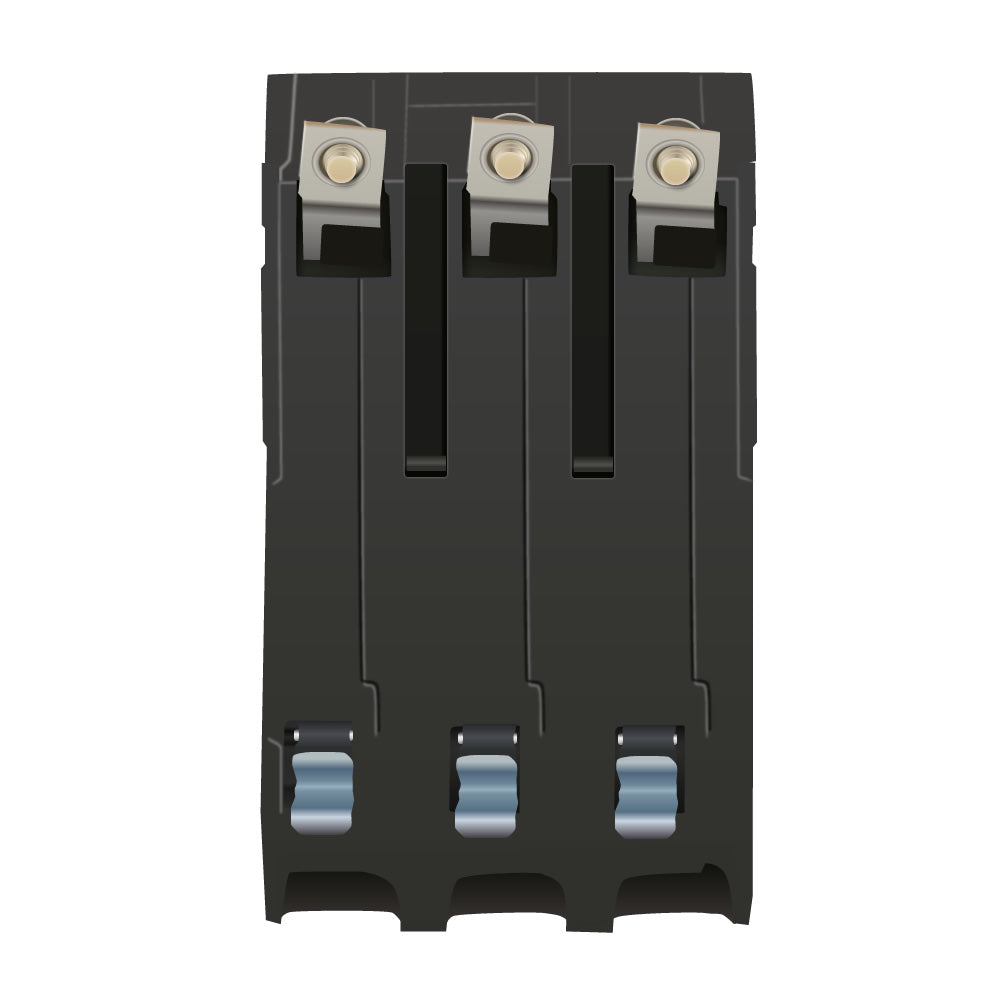

QOB370 - Square D Bolt-On 70 Amp Breaker

Schneider Electric/Square D Miniature circuit breaker with Visi-Trip indicator has box-type lugs to accommodate 4 - 2/0 AWG copper and aluminum wires. The 3-Pole circuit breaker has voltage rating of 240 VAC current rating of 70 Amps and short-circuit current rating of 10 kilo-Amps.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 70 A
• System Voltage: 120/240 V AC
• Mounting Type: Bolt-on
• Number of Poles: 3P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Inturrupt Rating: 10 kA at: 120/240 V AC 50/60 Hz
• Number of Panel Spaces: 3
• Wire Size: AWG 8...AWG 2 (copper or aluminium)
• Height: 3.12 in
• Depth: 2.91 in
• Width: 2.25 in
• Authentic Schneider Electric / Square D Product
• Dimensions (H x W x L): 3.12" x 2.25" x 2.91"
• 3 phase

Alt model: q0b370
