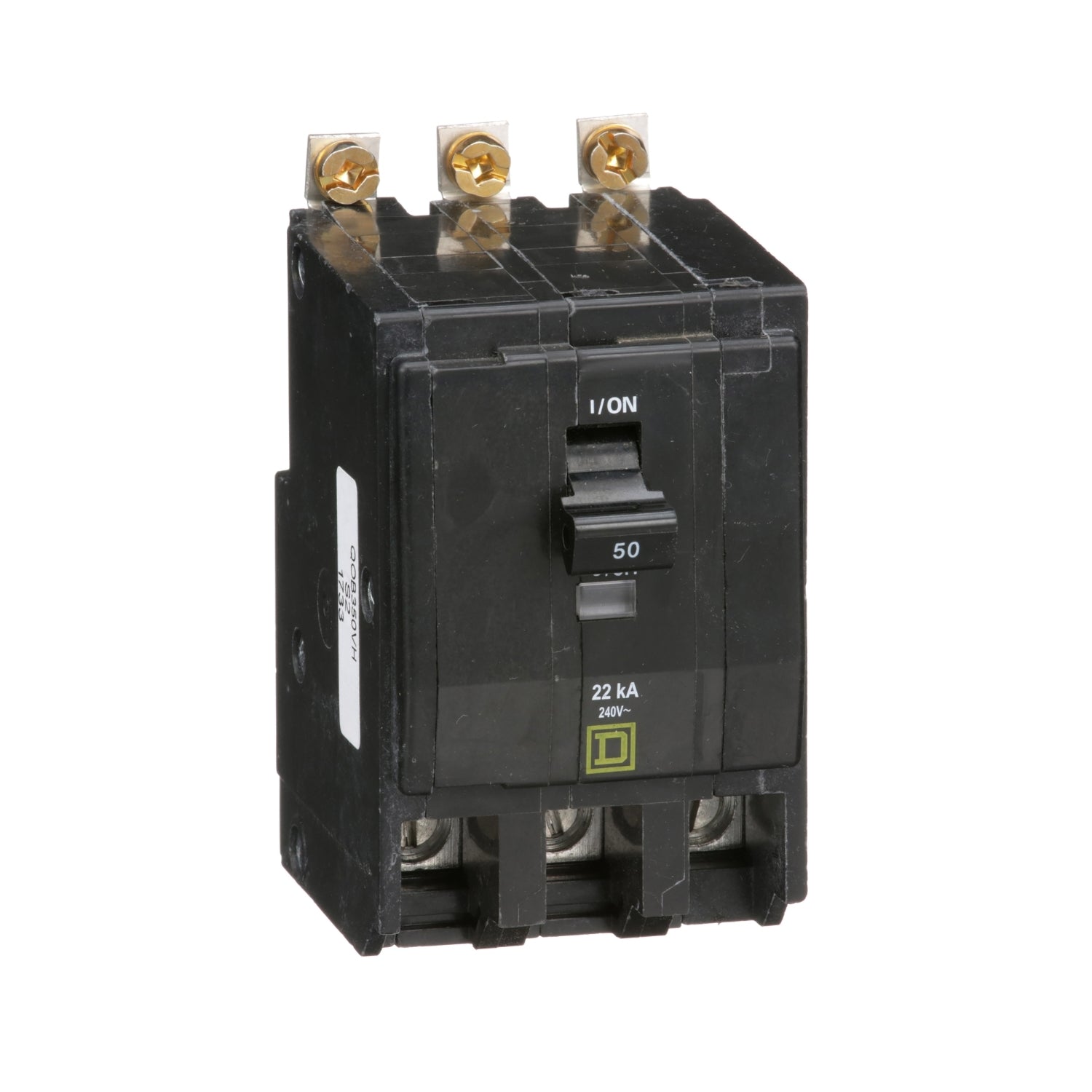

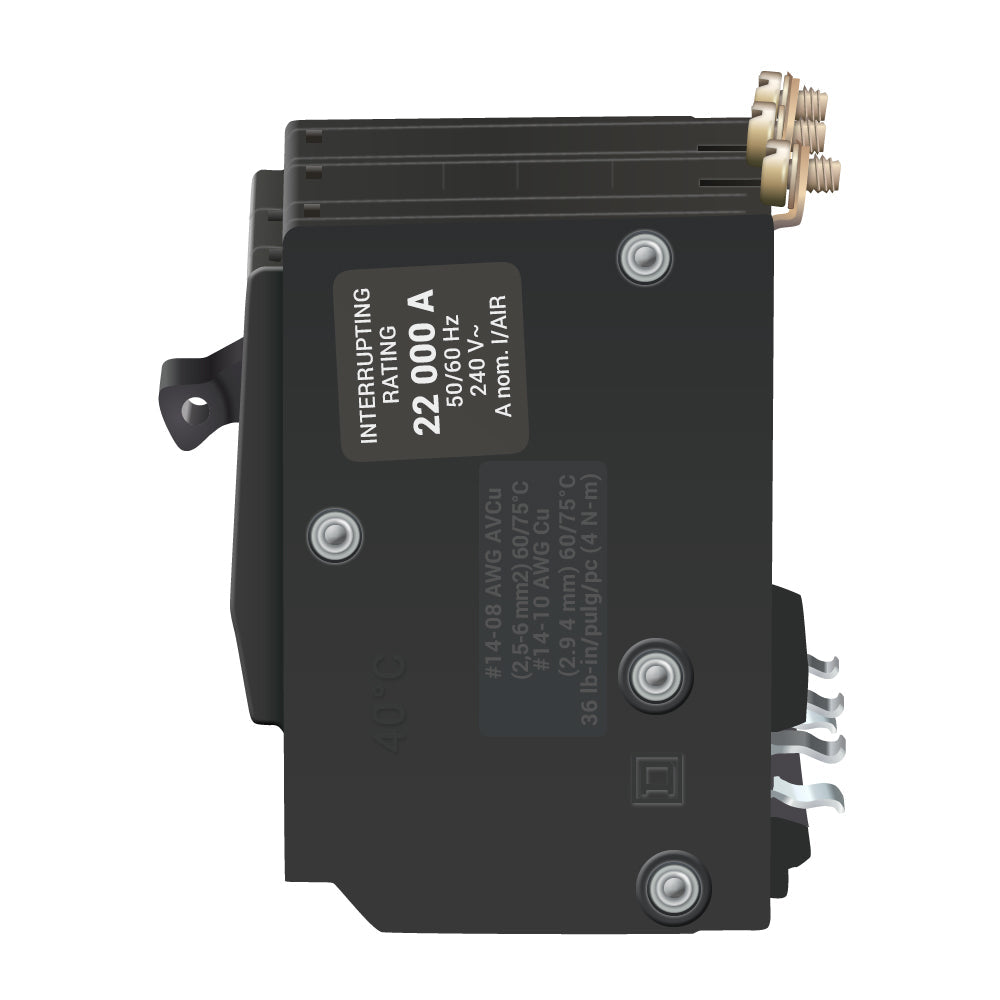

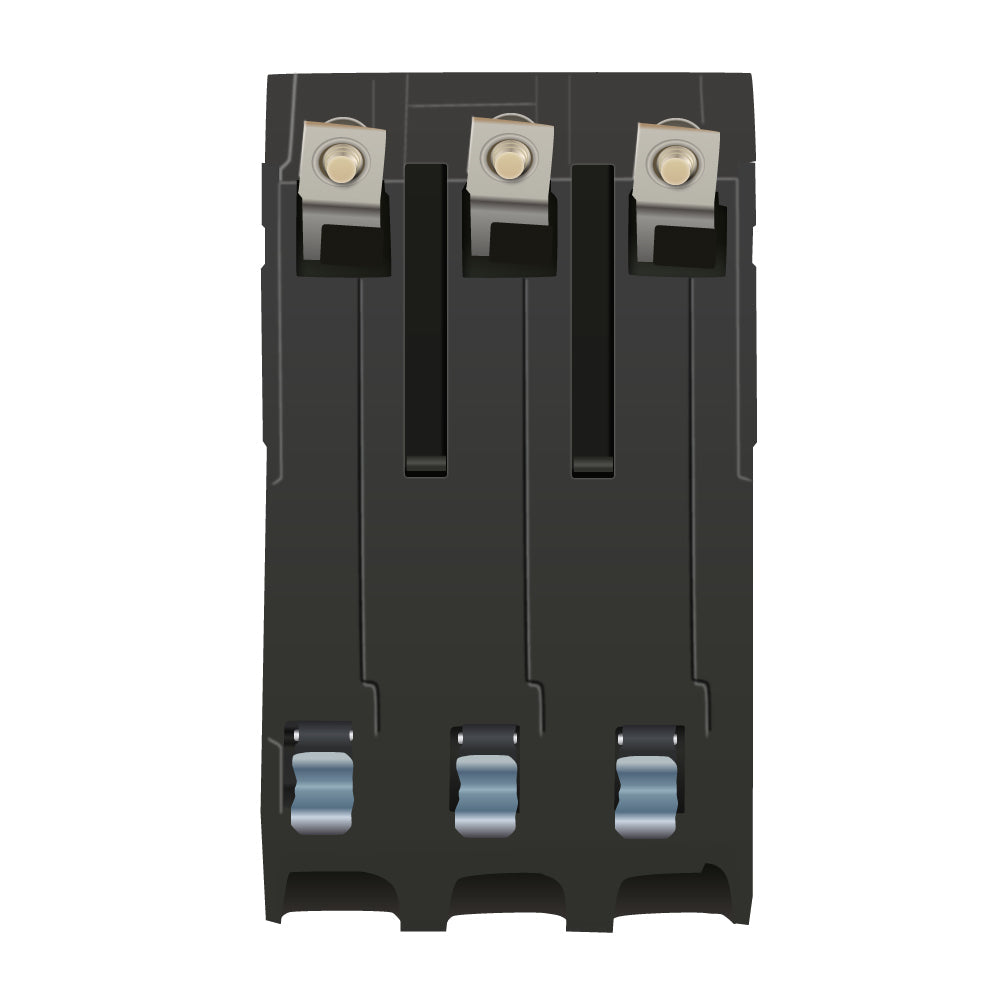

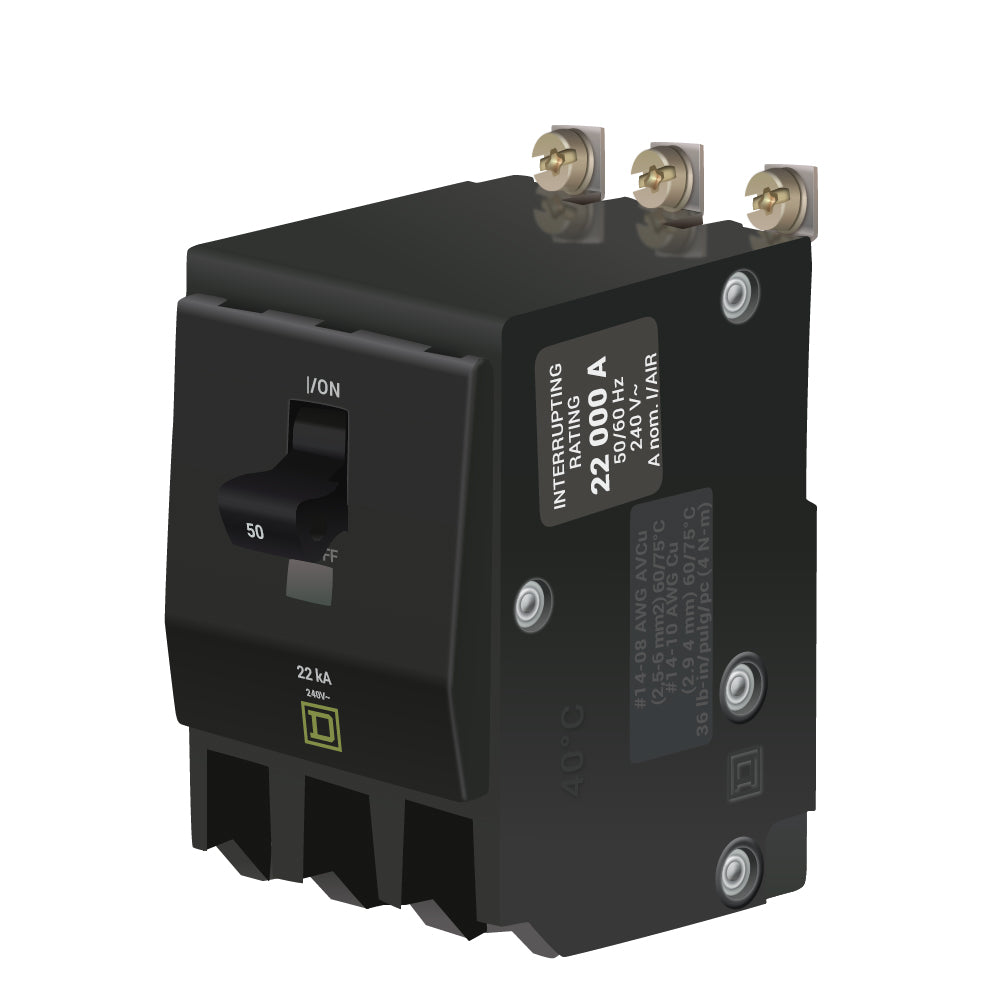

QOB350VH - Square D Bolt-On 50 Amp Breaker

Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 50 Amps and interrupting rating of 22 kilo-Amps. The 3-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 8 - 2 AWG.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 50 A
• System Voltage: 120 V AC, 120/240 V AC, 240 V AC
• Mounting Type: Bolt-on
• Number of Poles: 3P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
• Number of Panel Spaces: 3
• Wire Size: AWG 8...AWG 2 (copper or aluminium)
• Certifications: CSA, UL listed

• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Square D Product
• Dimensions (H x W x L): 3.12" x 2.25" x 2.91"
• 3 phase

Alt model: q0b350vh
