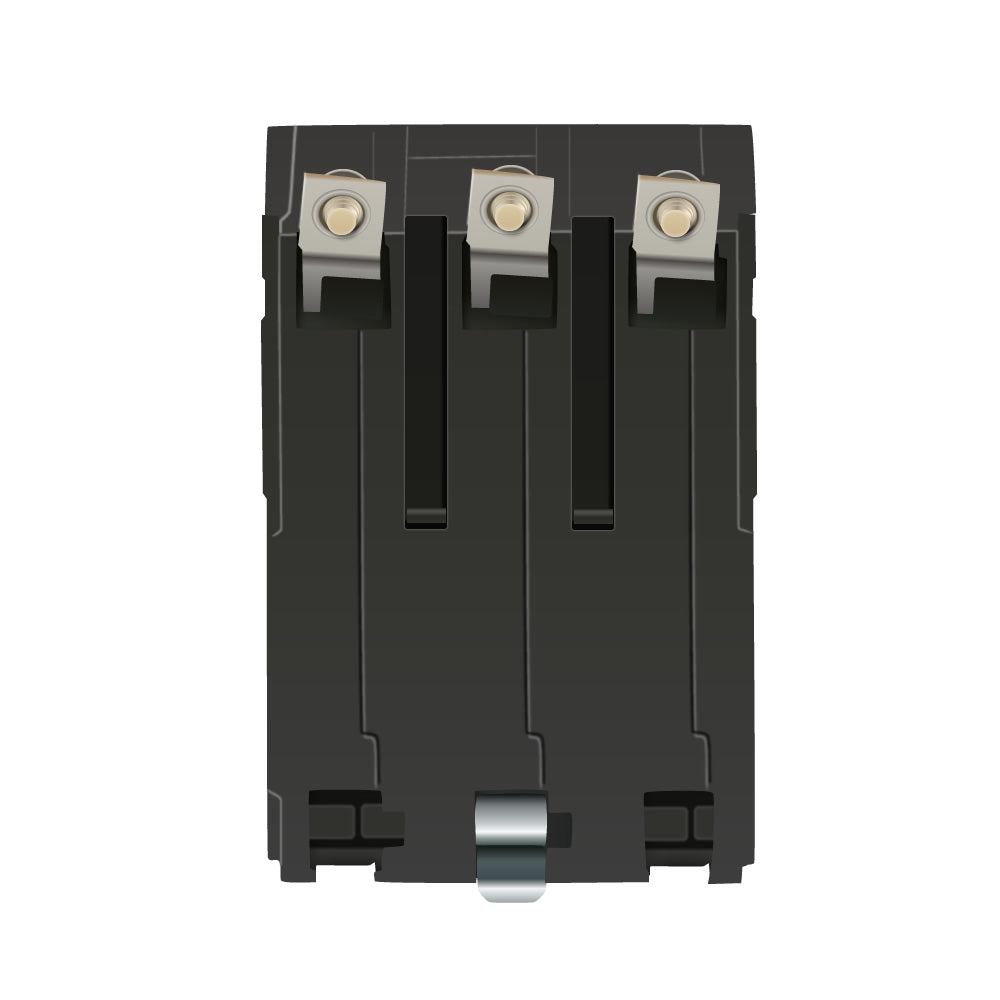

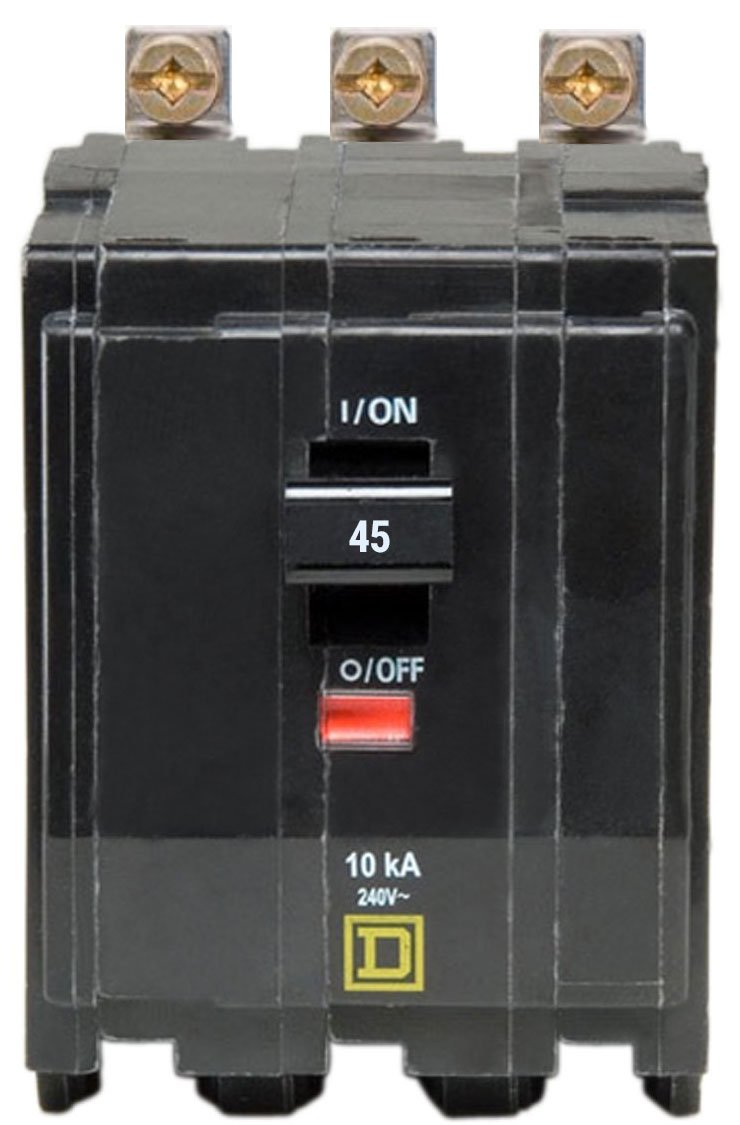

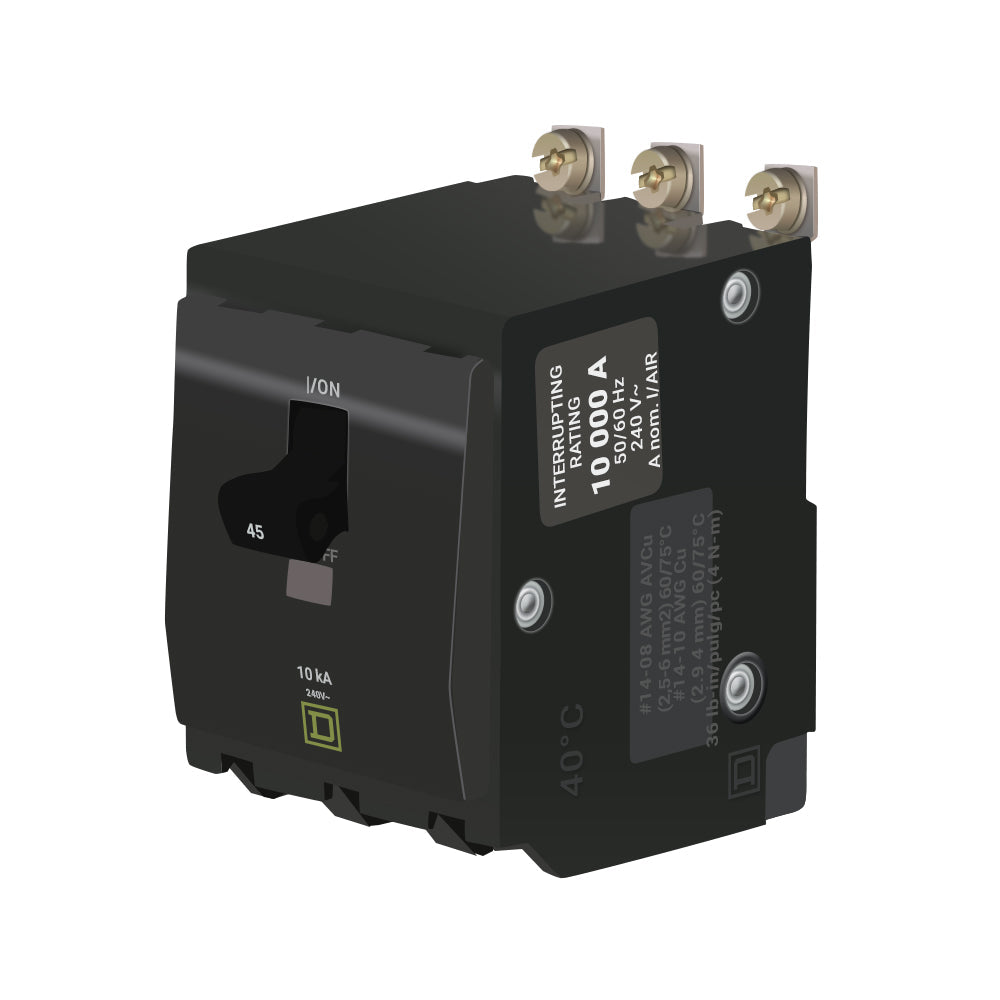

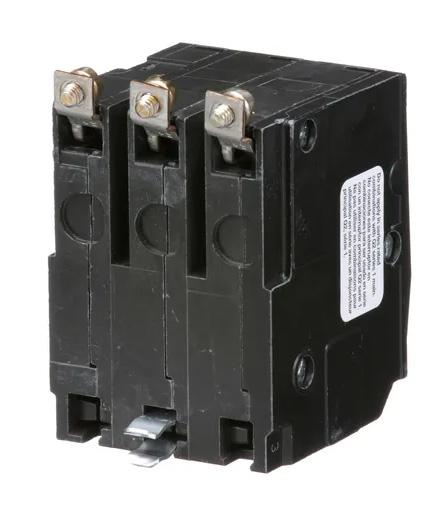

QOB345 - Square D Bolt-On 45 Amp Breaker

Square D QOB series three pole 45 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 240V (LI) long-time and instantaneous trip functions suitable for QOB Series load centers.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 45 A
• Mounting Type: Bolt-on
• Number of Poles: 3P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Inturrupt Rating: 5 kA at: 48 V DC, 10 kA at,120/240 V AC 0/60 Hz, 10 kA at, 240 V AC 50/60 Hz, 10 kA at: 120 V AC 50/60 Hz
• Number of Panel Spaces: 3
• Wire Size: AWG 8...AWG 2 (copper or aluminium)
• Height: 3.12 in
• Depth: 2.91 in
• Width: 2.25 in
• Authentic Schneider Electric / Square D Product
• Voltage Rating: 240 Volt
• Dimensions (H x W x L): 3.12" x 2.25" x 2.91"
• 3 phase

Alt model: q0b345
