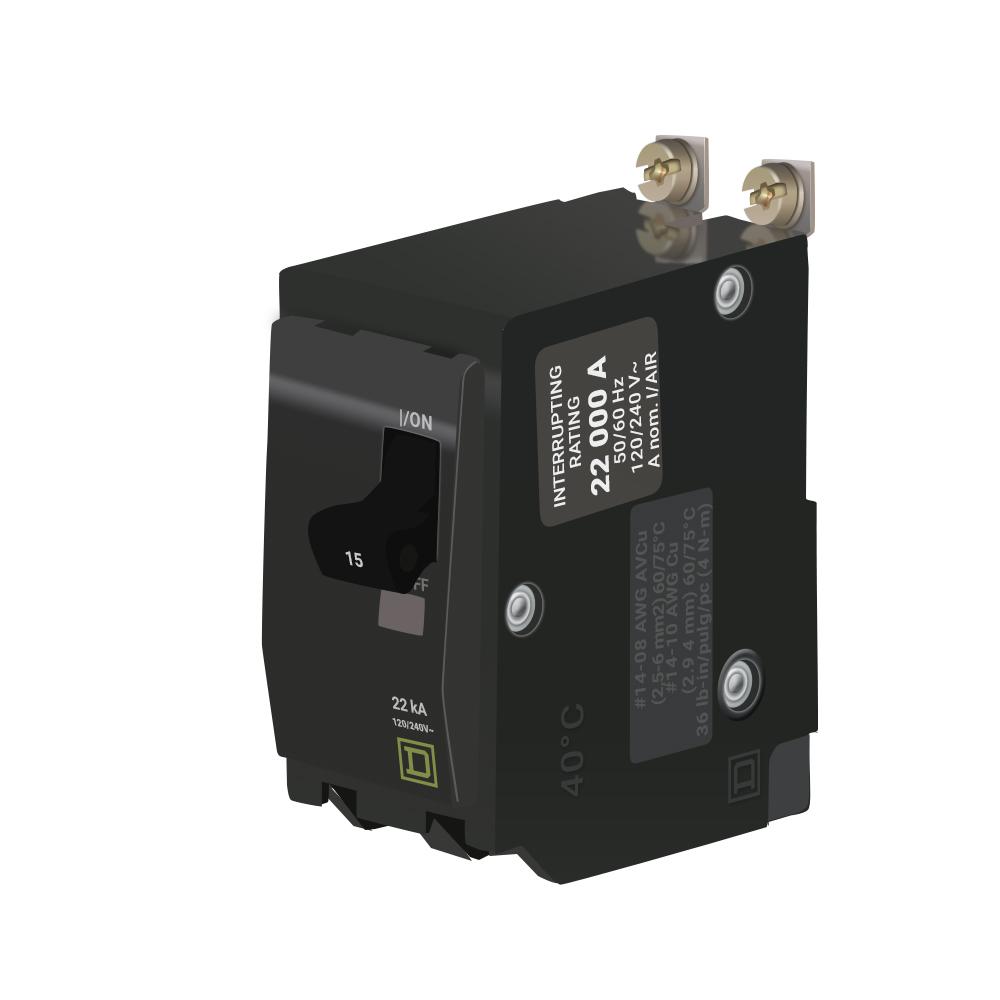

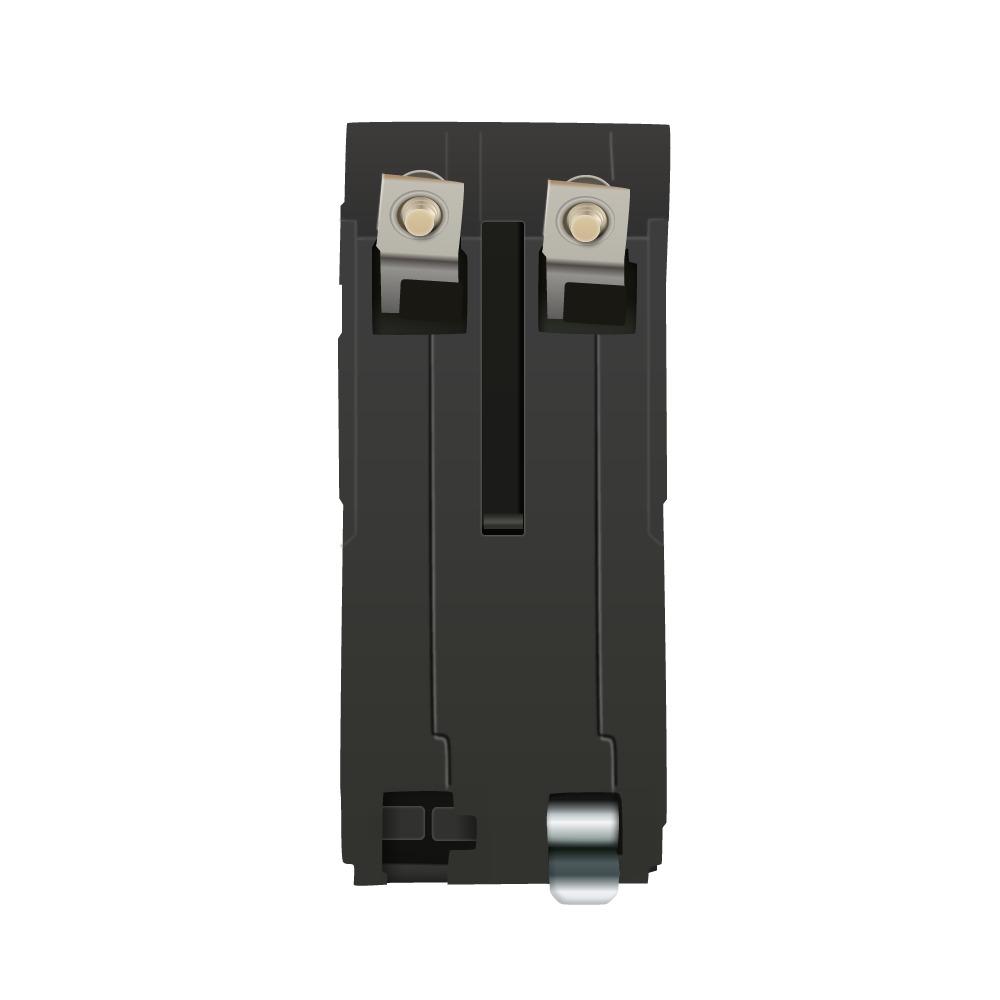

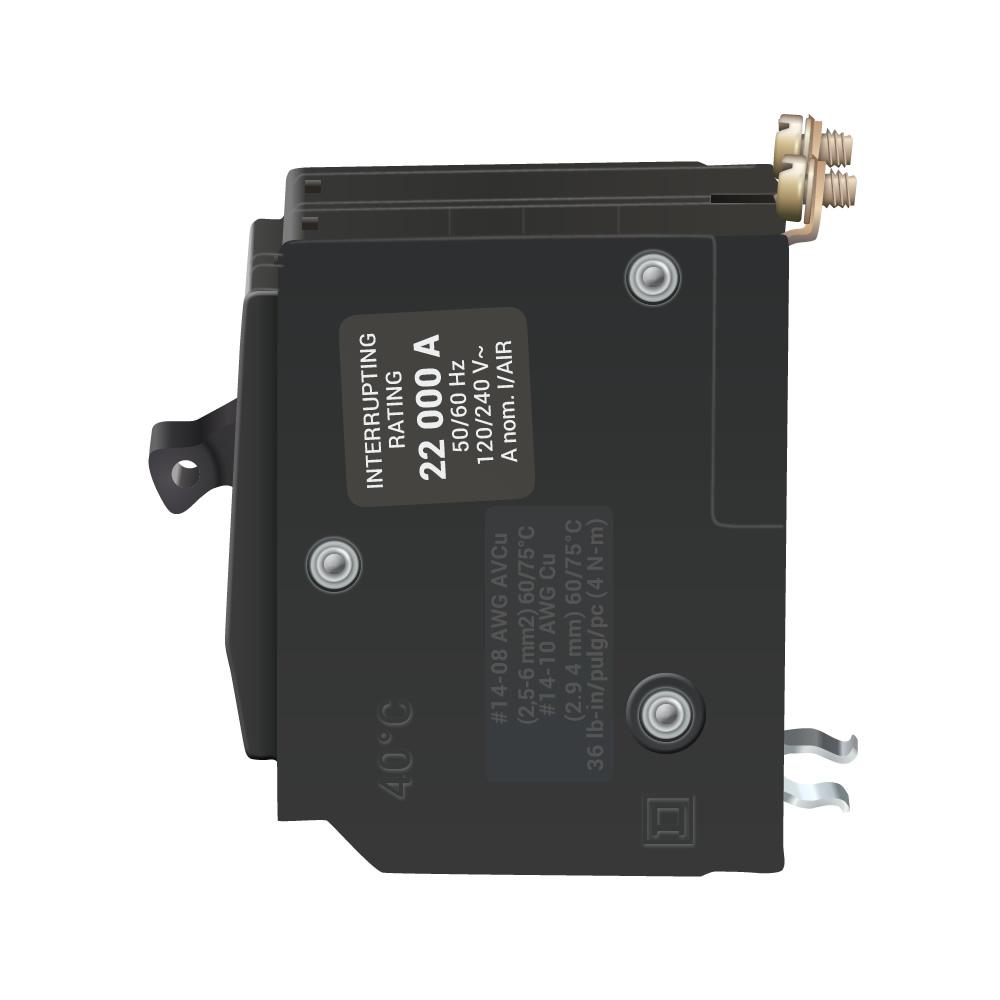

QOB215VH - Square D Bolt-On 15 Amp Breaker

Square D QOB series double pole single phase 15 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 22 kiloampere at 240V suitable for QOB Series load centers.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 15 A
• System Voltage: 120/240 V AC, 240 V AC
• Mounting Type: Bolt-on
• Number of Poles: 2P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Pressure plate
• Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
• Number of Panel Spaces: 2
• Wire Size: AWG 14...AWG 8 (copper or aluminium)
• Certifications: CSA, UL listed

• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Square D Product
• Dimensions (H x W x L): 3" x 1.5" x 2.91"

Alt model: q0b215vh
