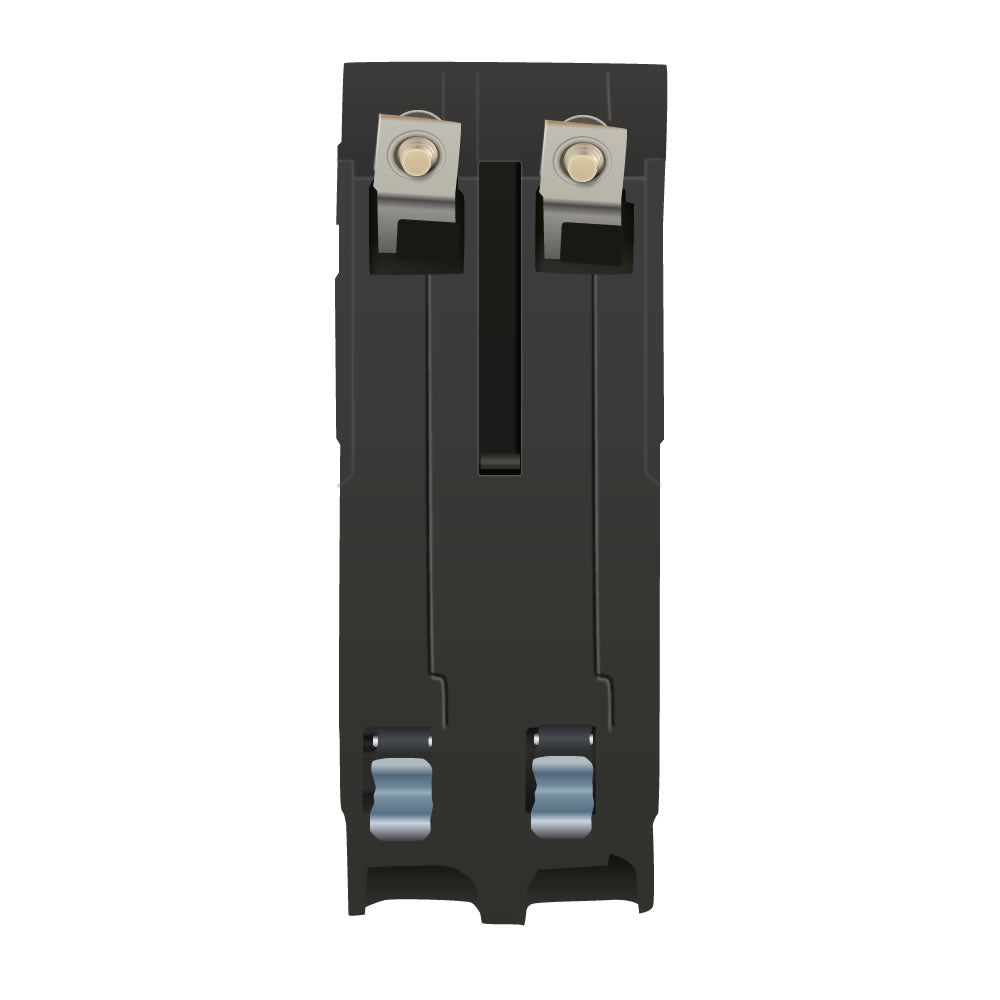

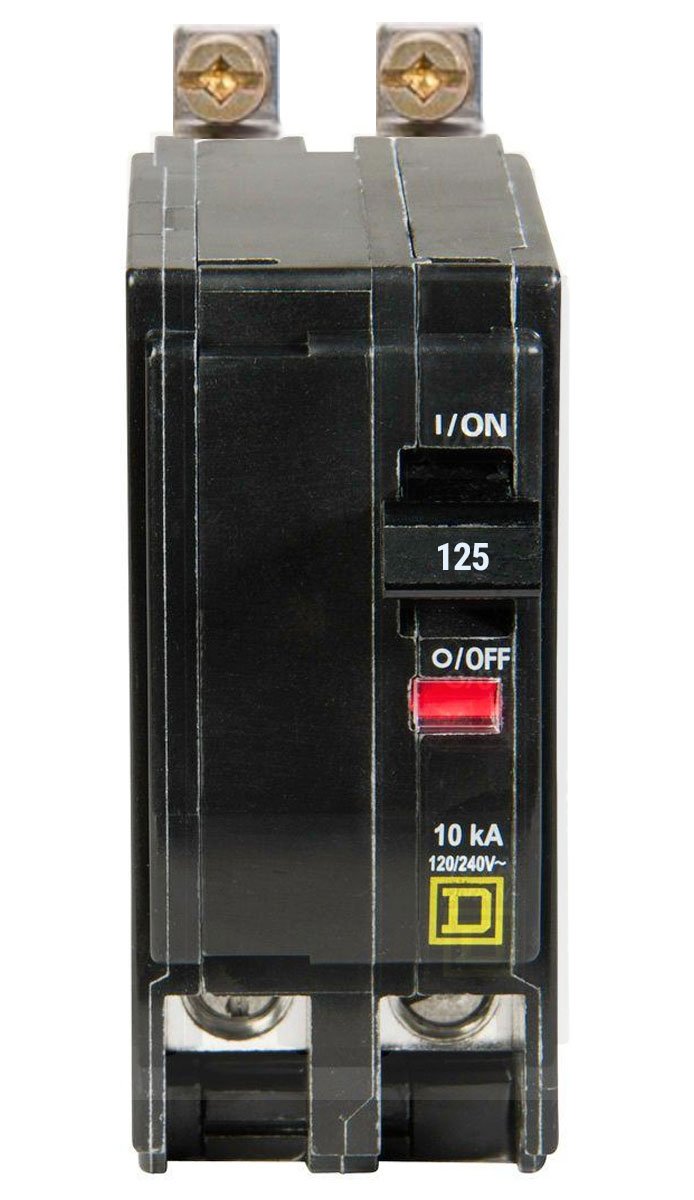

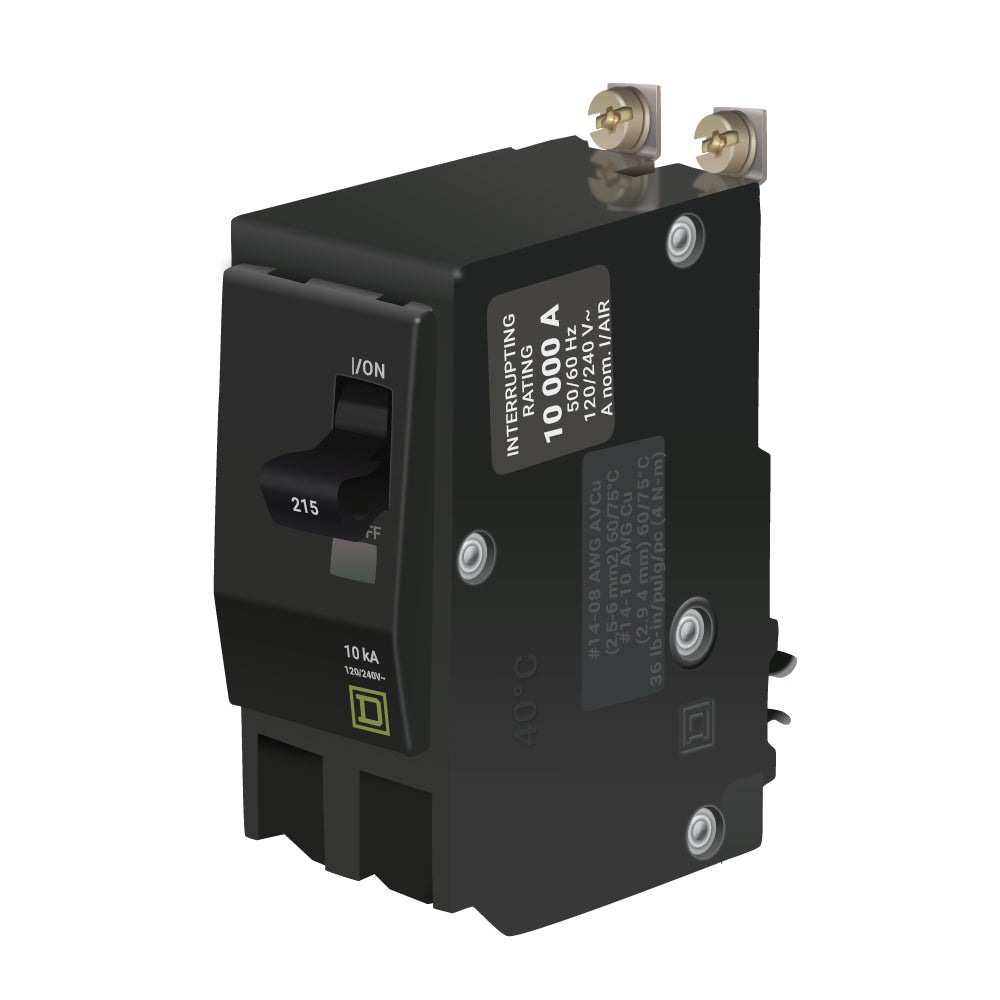

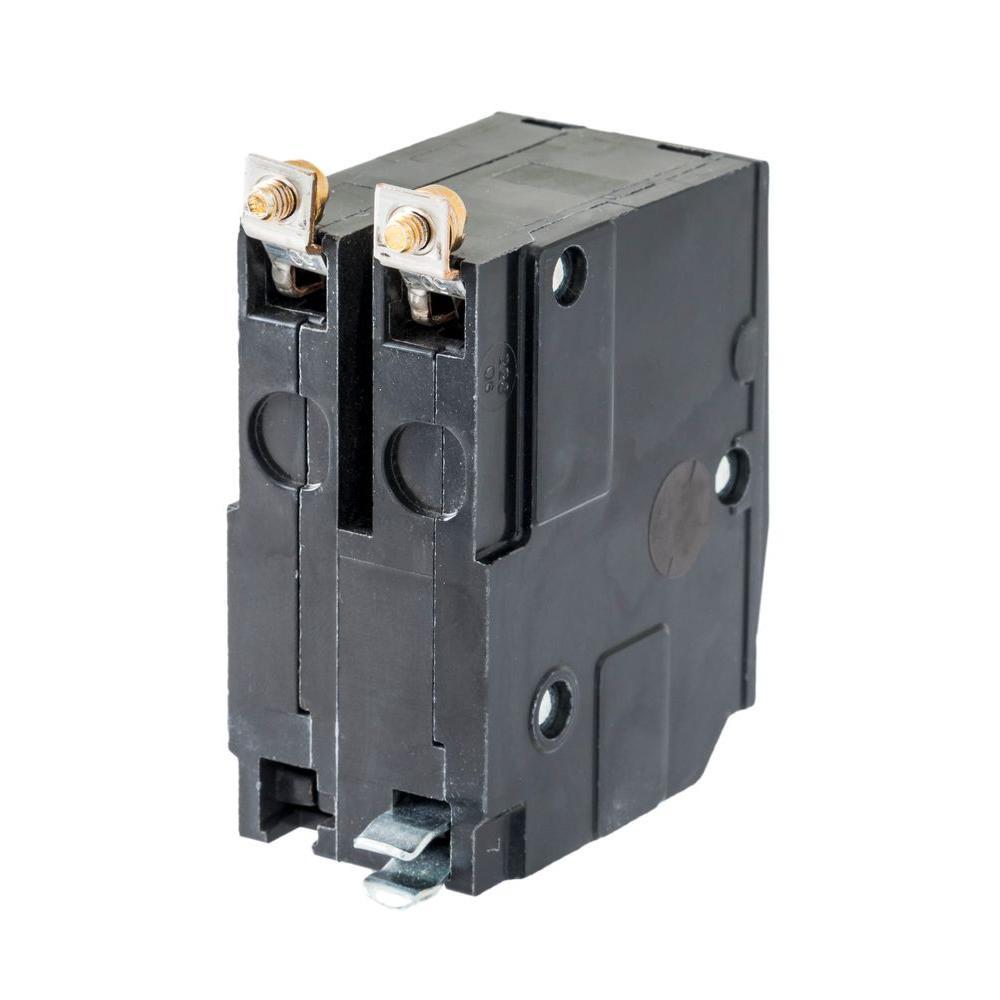

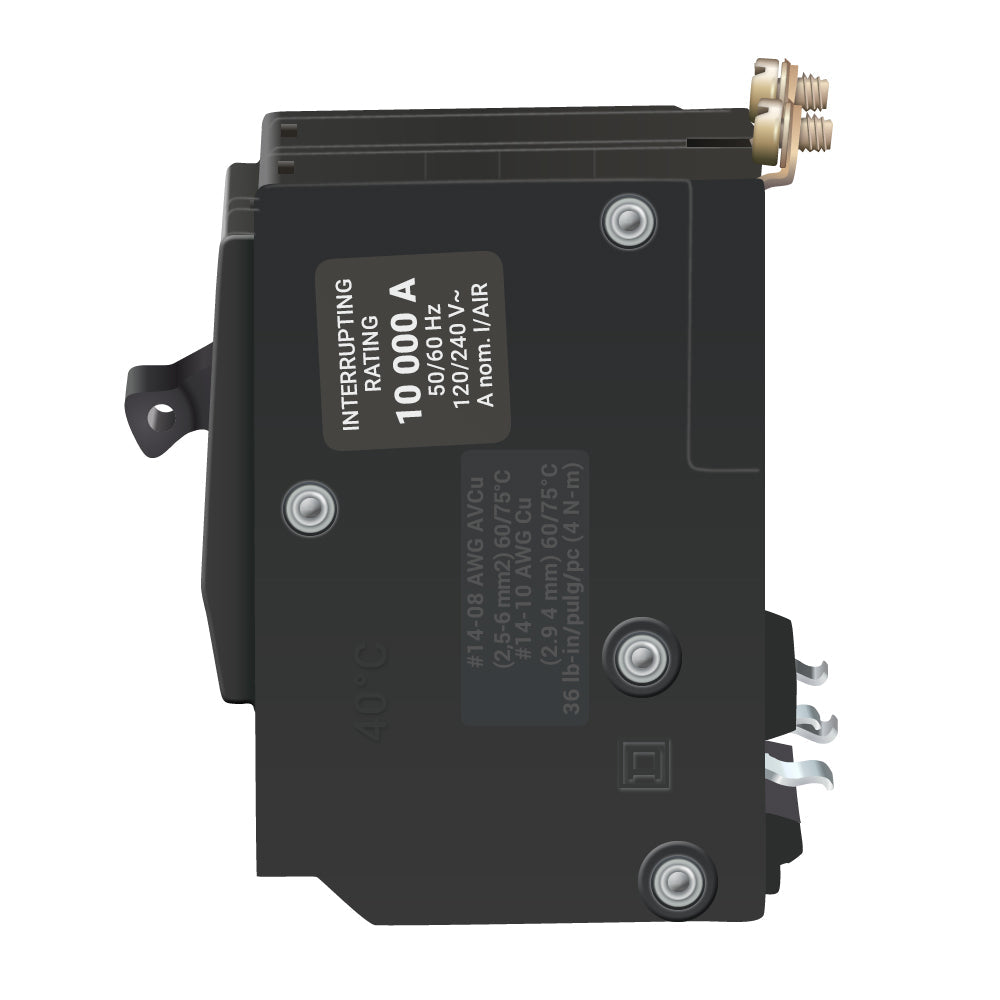

QOB2125 - Square D Bolt-On 125 Amp Breaker

Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 125 Amps and interrupting rating of 10kaic. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates AWG 4...AWG 2/0 copper or aluminum.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 125 A
• System Voltage: 120 V AC, 120/240 V AC
• Mounting Type: Bolt-on
• Number of Poles: 2P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Number of Panel Spaces: 2
• Wire Size: AWG 4...AWG 2/0 (copper or aluminium)
• Height: 3.5 in
• Depth: 2.91 in
• Width: 1.5 in
• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Schneider Electric / Square D Product
• Dimensions (H x W x L): 3.5" x 1.5" x 2.91"

Alt model: q0b2125
