Home 3 Pole MJA36800 - Square D - Molded Case Circuit Breaker

3 Pole

MJA36800 - Square D - Molded Case Circuit Breaker

$4,715.99 - $5,219.99

Condition: New

Product variants

Quantity

Sku:

MJA36800

Category:

3 Pole

Tag:

Brand_ Square D ,

Breaker_ 3 Pole

Vendor:

Circuitbreakersrus

Type:

Molded Case Circuit Breaker

Overview

Product Specifications - MJA36800 - Square D Powerpact Circuit Breaker

Part Number:

MJA36800
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

800
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

MJA
Functions:

LI - Long-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

65kA@480V

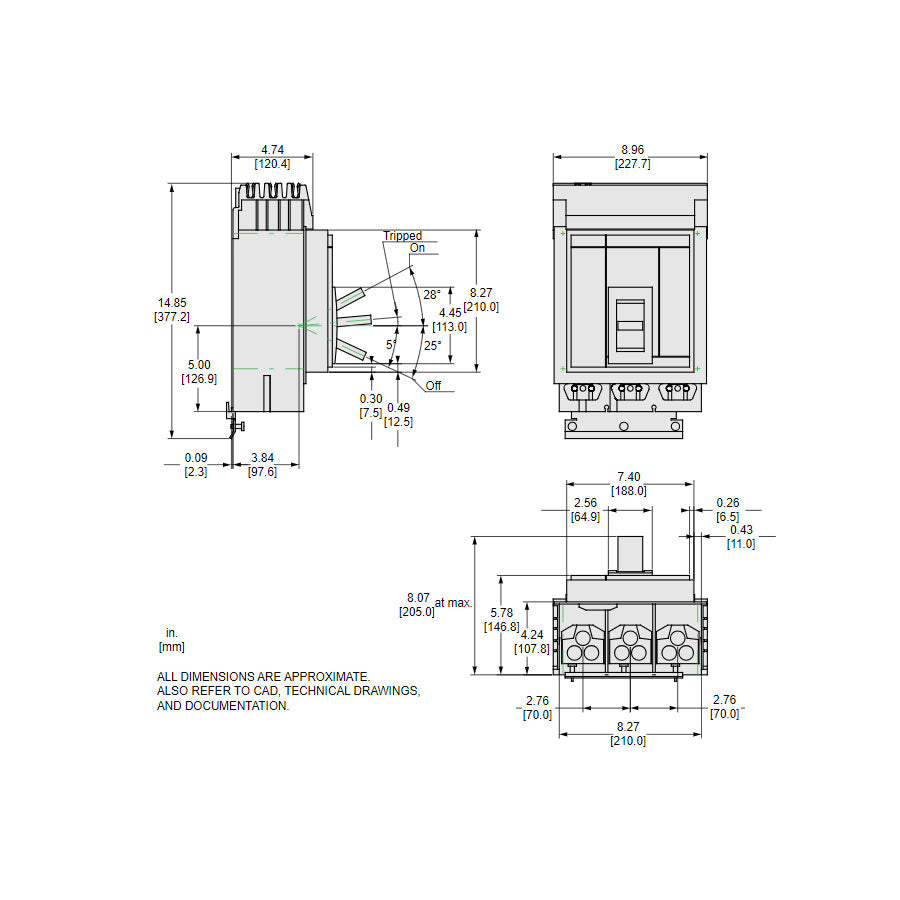

Dimensions

Dimensions (HxWxD):

12.86" x 0.32" x 8.27"
Weight:

29 lbs

Standards

Additional Details

FrameType:

M Frame
Trip Unit Technology:

Electronic, basic, ET 1.0
Line Rated Current:

800
Mounting Mode:

I-Line bracket

Breaking Capacity Code

J
Electrical Connection:

I-Line connection line / Lugs load
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 3/0...350 kcmil Aluminum/Copper Terminals

Product Description - MJA36800 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type MJA, 3P, ABC phase circuit configuration, 3PH, 800A, 600V, 65kA@480V, UL listed, current limiting, i-line style plug-in, complete with basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, solid state electronic, molded case circuit breakers.

Documentation

Catalogue

Data Sheet
