Name: MJA36400 - Square D - Molded Case Circuit Breaker
Brand: Circuitbreakersrus
Price: 4975.99 USD
Availability:  instock

Home 3 Pole MJA36400 - Square D - Molded Case Circuit Breaker

3 Pole

MJA36400 - Square D - Molded Case Circuit Breaker

$3,838.99 - $4,975.99

Condition: New

Product variants

Quantity

Sku:

MJA36400

Category:

3 Pole

Tag:

Brand_ Square D ,

Breaker_ 3 Pole

Vendor:

Circuitbreakersrus

Type:

Molded Case Circuit Breaker

Overview

Product Specifications - MJA36400 - Square D Powerpact Circuit Breaker

Part Number:

MJA36400
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

400
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

MJA
Functions:

LI - Long-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

65kA@480V

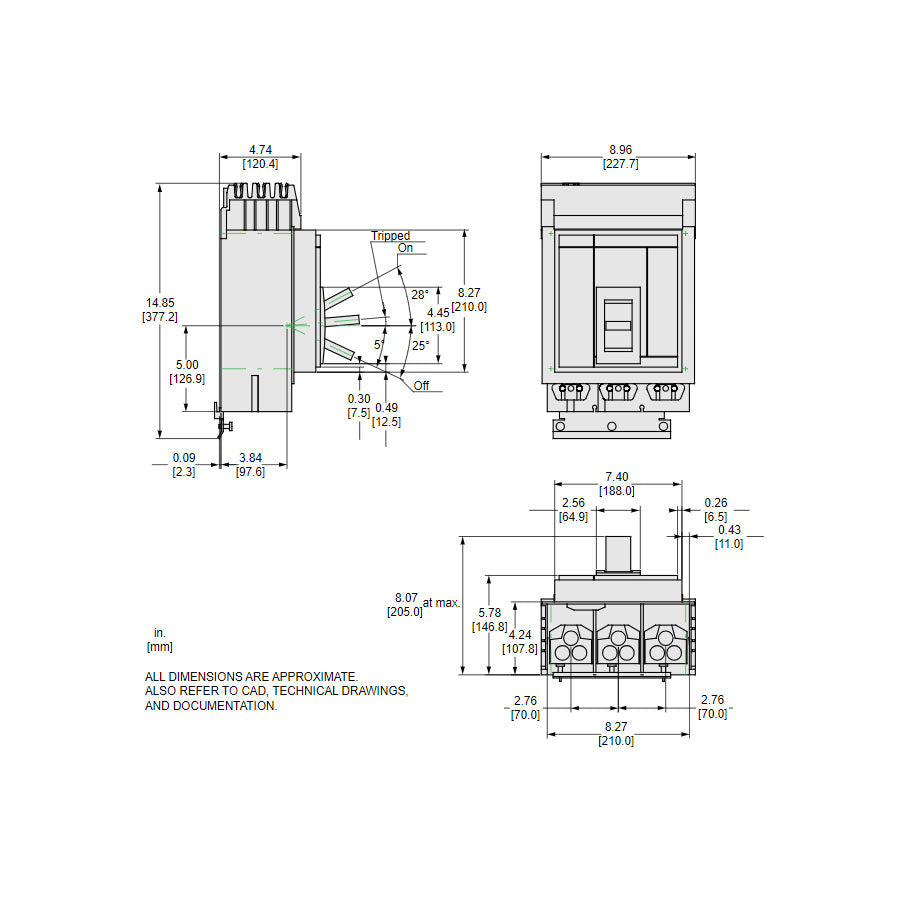

Dimensions

Dimensions (HxWxD):

12.86" x 0.32" x 8.27"
Weight:

29 lbs

Standards

Additional Details

FrameType:

M Frame
Trip Unit Technology:

Electronic, basic, ET 1.0
Line Rated Current:

400
Mounting Mode:

I-Line bracket

Breaking Capacity Code

J
Electrical Connection:

I-Line connection line / Lugs load
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 3/0...350 kcmil Aluminum/Copper Terminals

Product Description - MJA36400 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type MJA, 3P, ABC phase circuit configuration, 3PH, 400A, 600V, 65kA@480V, UL listed, current limiting, i-line style plug-in, complete with basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, solid state electronic, molded case circuit breakers.

Documentation

Catalogue

Data Sheet

Order Processing

Orders are processed within 1–2 business days after payment confirmation.
Orders placed on weekends or holidays will be processed the next business day.

Shipping Methods & Timeframes

We offer domestic and international shipping through trusted carriers (e.g., UPS, FedEx, USPS, DHL), depending on your location and selected method at checkout.

Shipping TypeEstimated Delivery TimeStandard Shipping3–7 business daysExpedited Shipping1–3 business daysInternational7–14 business days

Note: Delivery times may vary based on destination, customs delays, or carrier capacity.
