Name: JJA36200 - Square D - Molded Case Circuit Breaker
Brand: Circuitbreakersrus
Price: 1402.99 USD
Availability:  instock

Home 3 Pole JJA36200 - Square D - Molded Case Circuit Breaker

3 Pole

JJA36200 - Square D - Molded Case Circuit Breaker

$1,277.99 - $1,402.99

Condition: New

Product variants

Quantity

Sku:

jja36200

Category:

3 Pole

Tag:

Brand_ Square D ,

Breaker_ 3 Pole

Vendor:

Circuitbreakersrus

Type:

Molded Case Circuit Breaker

Overview

Product Specifications - JJA36200 - Square D Powerpact Circuit Breaker

Part Number:

JJA36200
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

200
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

JJA
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

65kA@480V

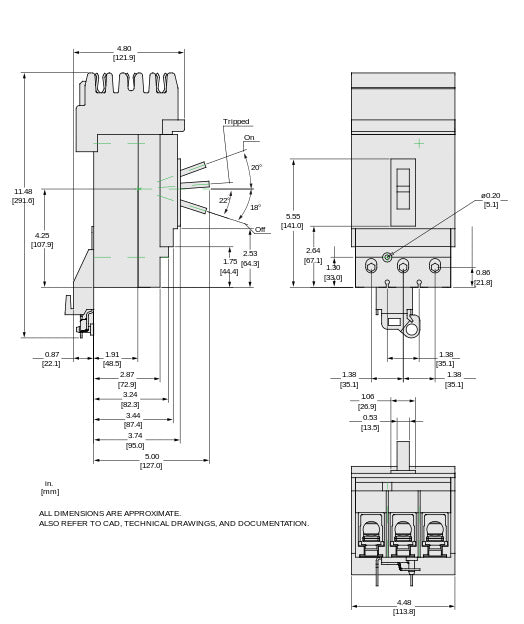

Dimensions

Dimensions (HxWxD):

11.48" x 4.48" x 5.87"
Weight:

5.29 lbs

Standards

Additional Details

Protection Type:

Overload protection / Short-circuit protection
Frame Type:

J-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

200 Amp
Mounting Mode:

I-Line bracket

Breaking Capacity Code:

J
Electrical Connection:

I-Line connection line / Lugs load
Magnetic Hold Current:

1000 Amp
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 4...AWG 4/0 aluminium/copper terminal

Product Description - JJA36200 - Square D Powerpact Circuit Breaker

Square D, Powerpact, type JJA, 3P, ABC phase connection, 3PH, 200A, 600V, 65kA@480V, UL listed, current limiting, i-line style plug-in, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.

Documentation

Catalogue

Technical Specifications

Order Processing

Orders are processed within 1–2 business days after payment confirmation.
Orders placed on weekends or holidays will be processed the next business day.

Shipping Methods & Timeframes

We offer domestic and international shipping through trusted carriers (e.g., UPS, FedEx, USPS, DHL), depending on your location and selected method at checkout.

Shipping TypeEstimated Delivery TimeStandard Shipping3–7 business daysExpedited Shipping1–3 business daysInternational7–14 business days

Note: Delivery times may vary based on destination, customs delays, or carrier capacity.
