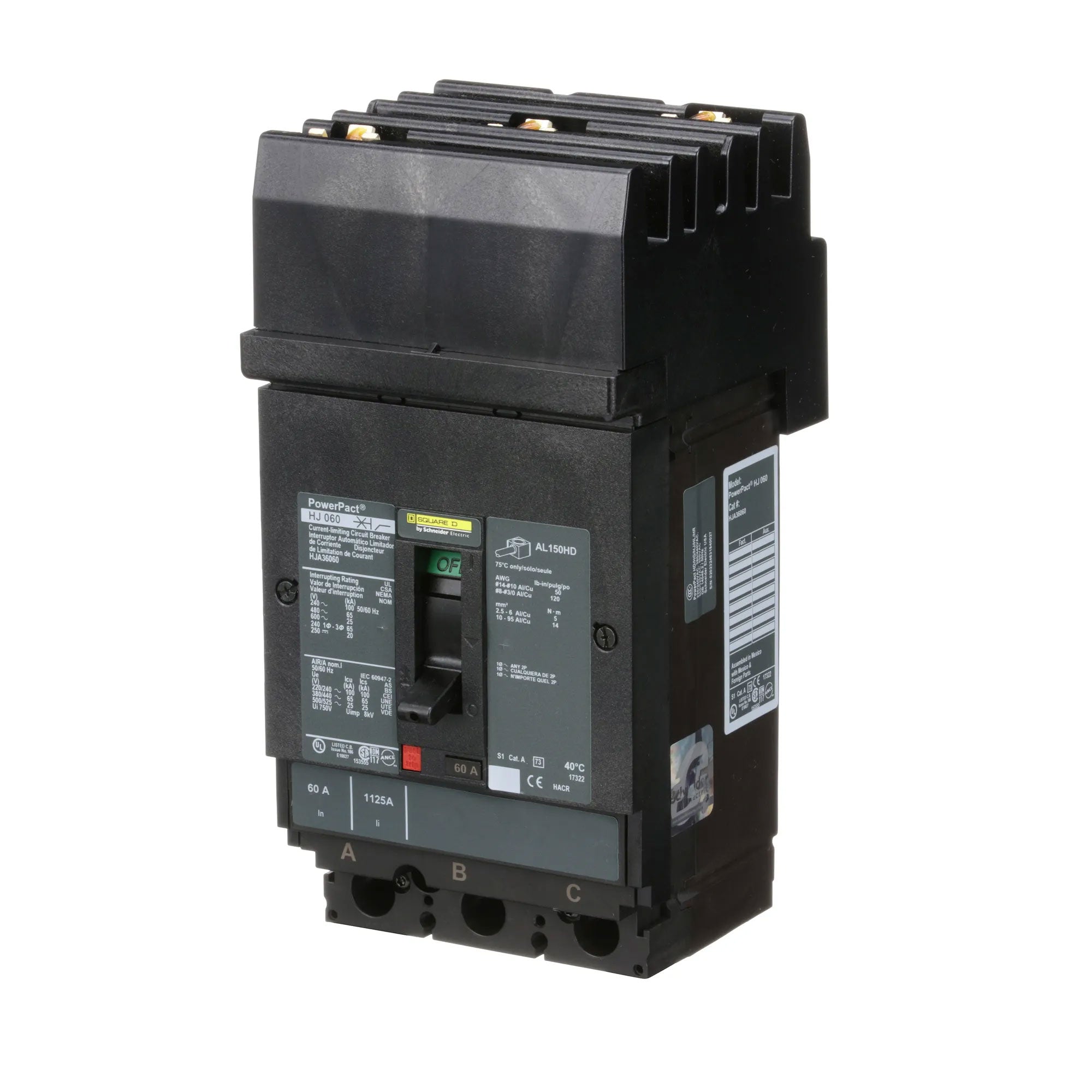

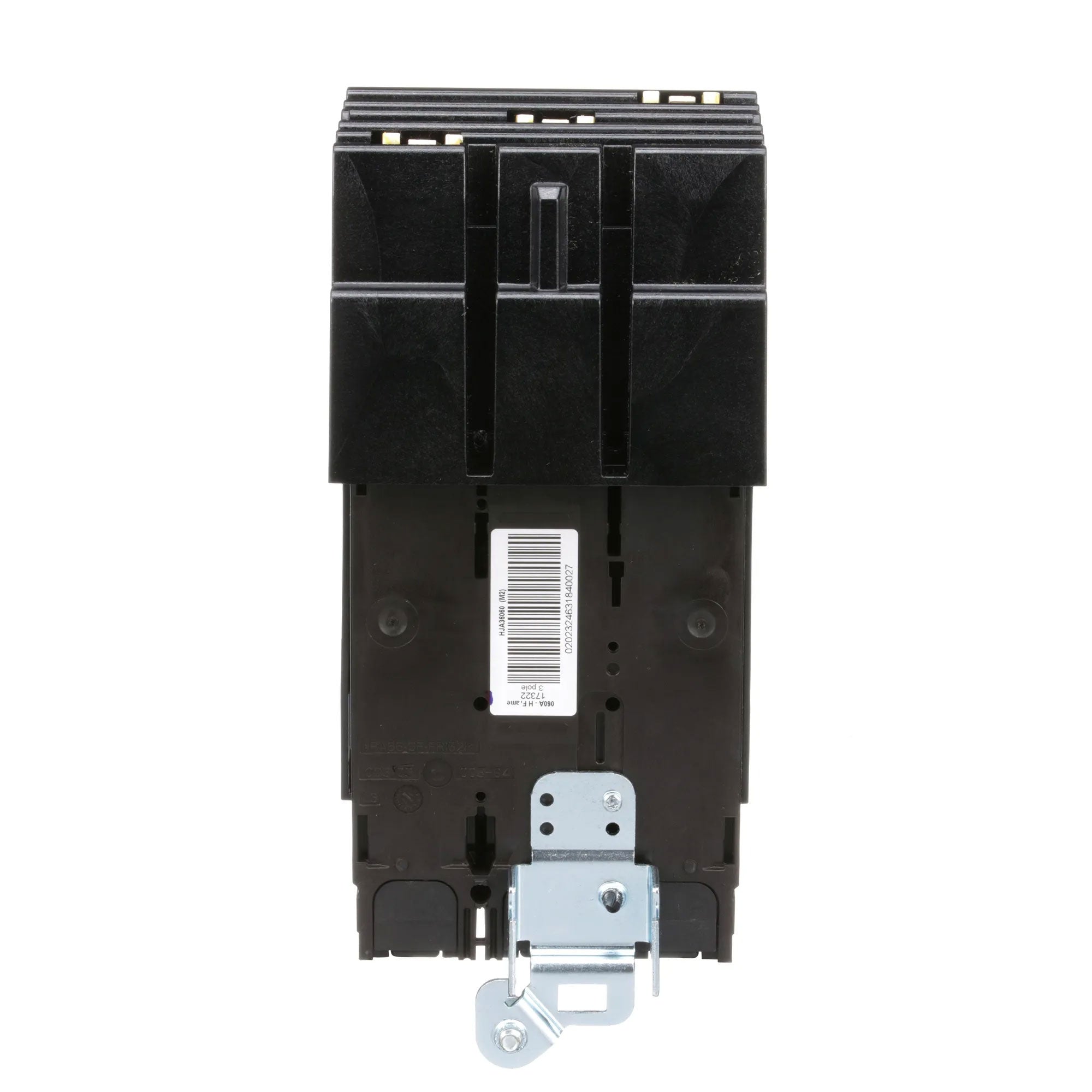

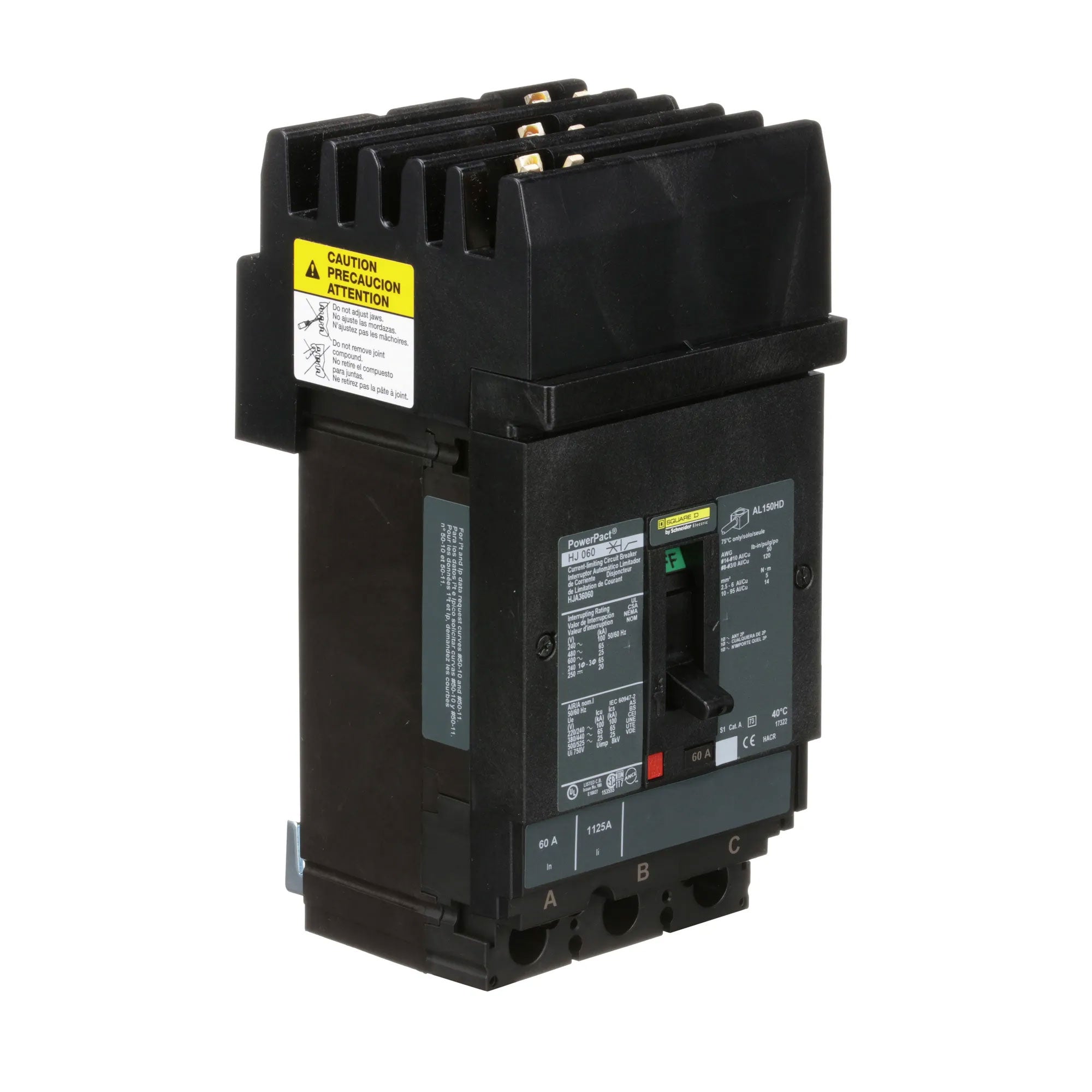

Name: HJA36060 - Square D - Molded Case Circuit Breaker
Brand: Circuitbreakersrus
Price: 663.99 USD
Availability:  instock

Home 3 Pole HJA36060 - Square D - Molded Case Circuit Breaker

3 Pole

HJA36060 - Square D - Molded Case Circuit Breaker

$572.99 - $663.99

Condition: New

Product variants

Quantity

Sku:

HJA36060

Category:

3 Pole

Tag:

Brand_ Square D ,

Breaker_ 3 Pole

Vendor:

Circuitbreakersrus

Type:

Molded Case Circuit Breaker

Overview

Product Specifications - HJA36060 - Square D Powerpact Circuit Breaker

Part Number:

HJA36060
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

60
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

HJA
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

35kA@480V

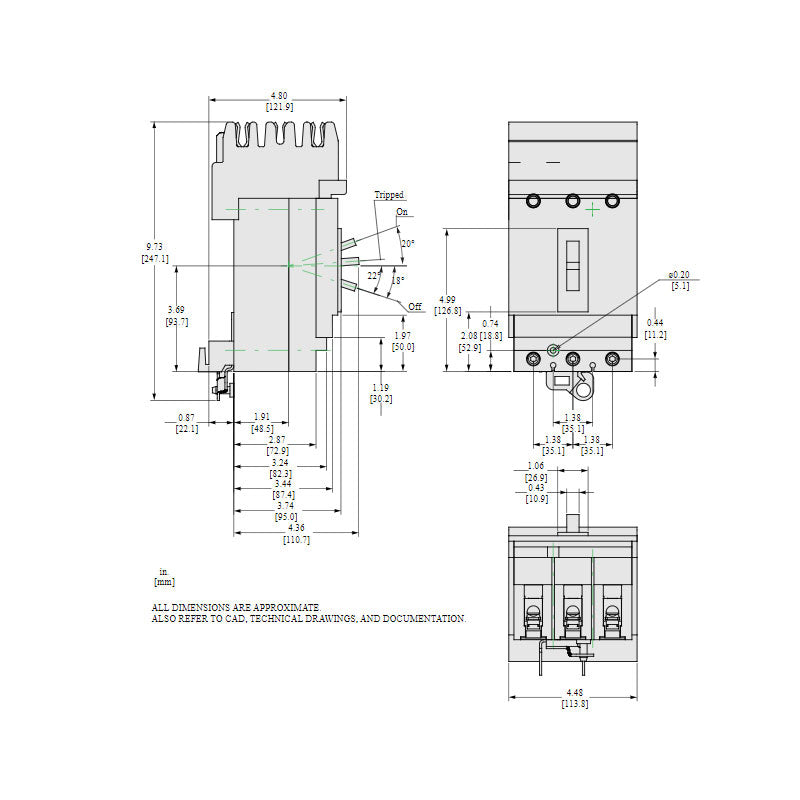

Dimensions

Dimensions (HxWxD):

9.37" x 4.48" x 4.8"

Weight:

4.85 lbs

Standards

Additional Details

Frame Type:

H-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

60 A
Mounting Mode:

I-Line bracket

Breaking Capacity Code

J
Electrical Connection:

I-Line connection line / Lugs load
Magnetic Hold Current:

800 A
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HJA36060 - Square D Powerpact Circuit Breaker

Square D, Powerpact, type HJA, 3PH, 3P, ABC phase connection, 60A, 600V, 65kA@480V, current limiting, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.

Documentation

Catalogue

Technical Specification
