Home 3 Pole HDL36060 - Square D - Molded Case Circuit Breaker

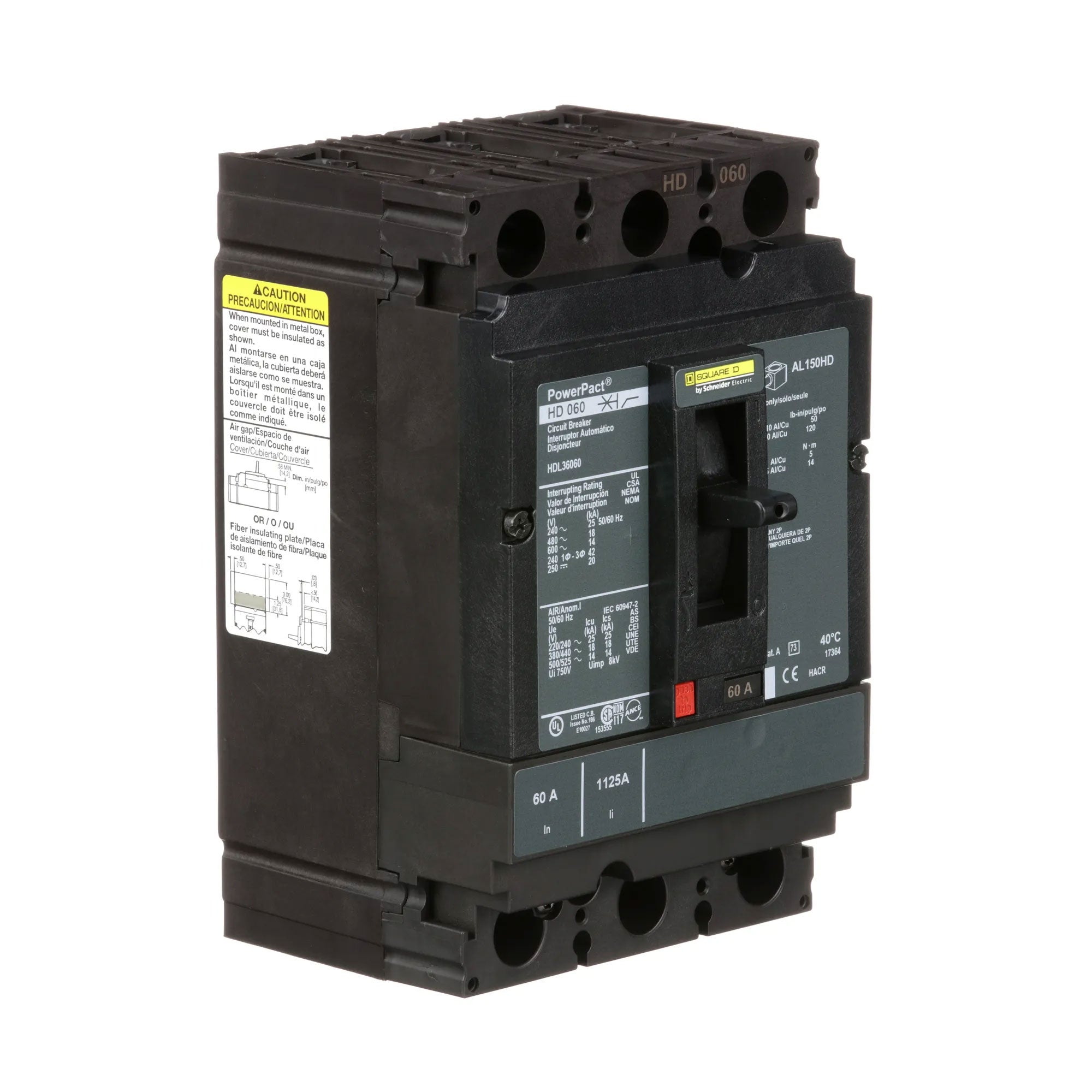

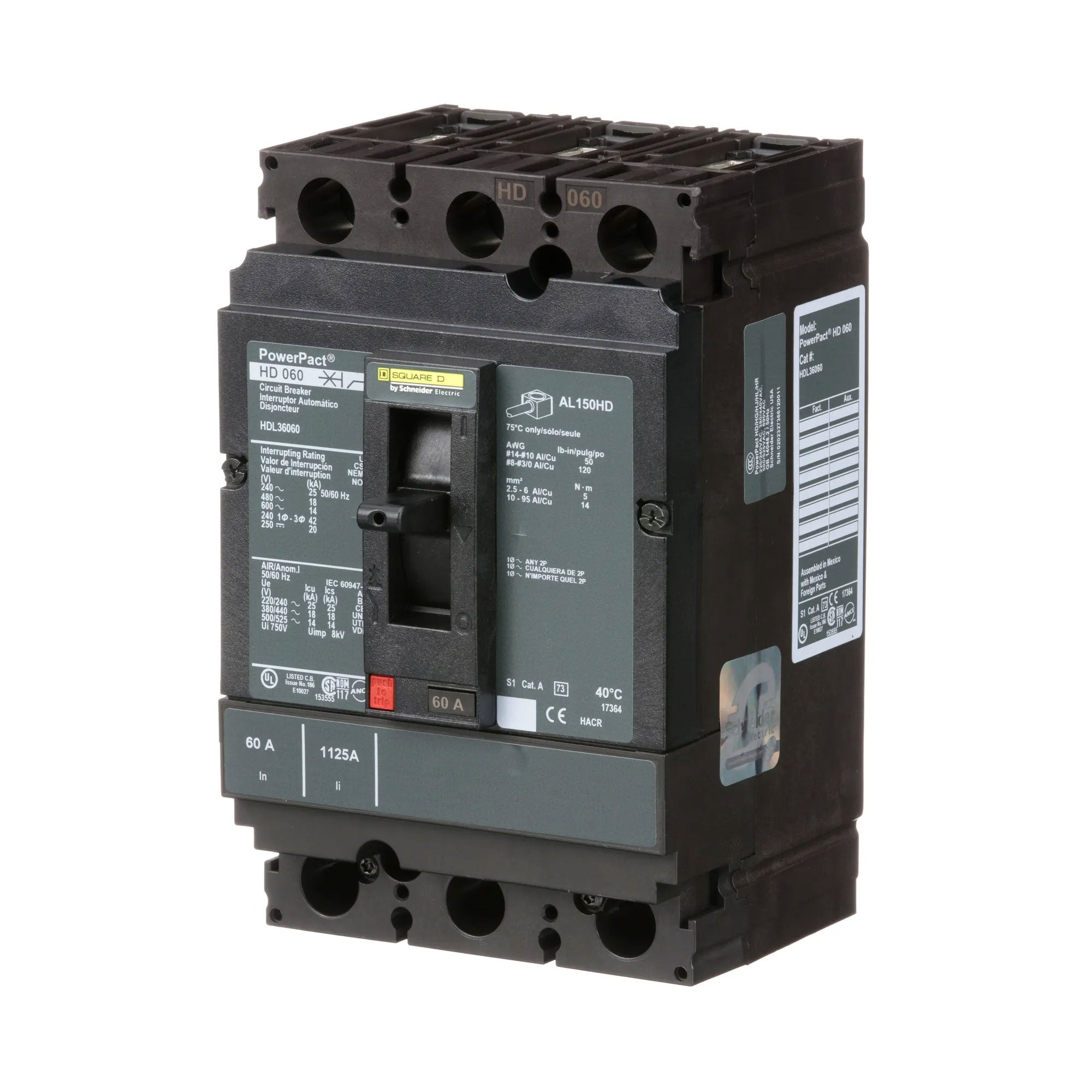

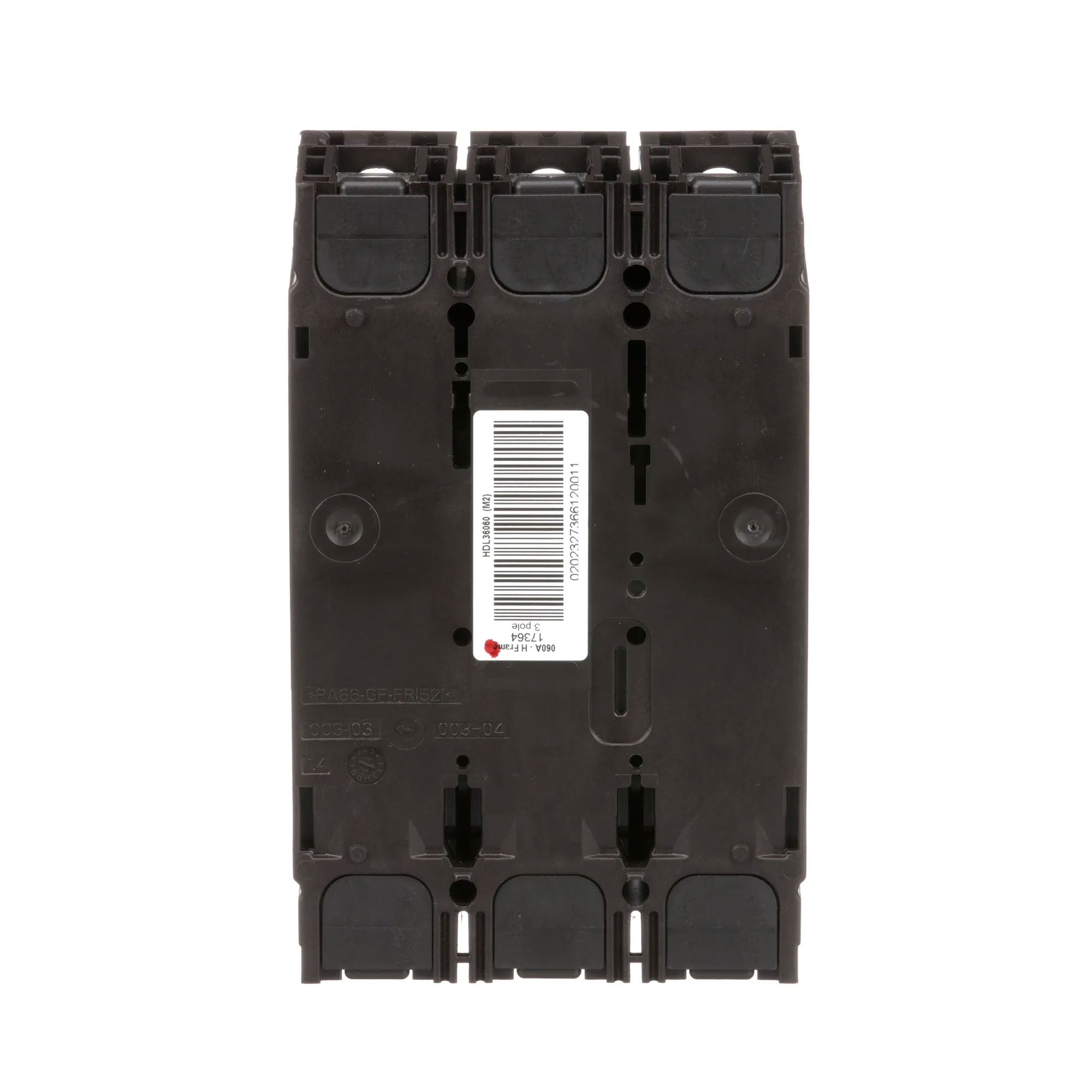

HDL36060 - Square D - Molded Case Circuit Breaker
HDL36060 - Square D - Molded Case Circuit Breaker
HDL36060 - Square D - Molded Case Circuit Breaker
HDL36060 - Square D - Molded Case Circuit Breaker
3 Pole

HDL36060 - Square D - Molded Case Circuit Breaker

$399.99 - $472.99
Condition: New

Quantity

Sku:

HDL36060

Category:

3 Pole

Tag:

Brand_ Square D ,

Breaker_ 3 Pole

Vendor:

Circuitbreakersrus

Type:

Molded Case Circuit Breaker

Overview

Product Specifications - HDL36060 - Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    HDL

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

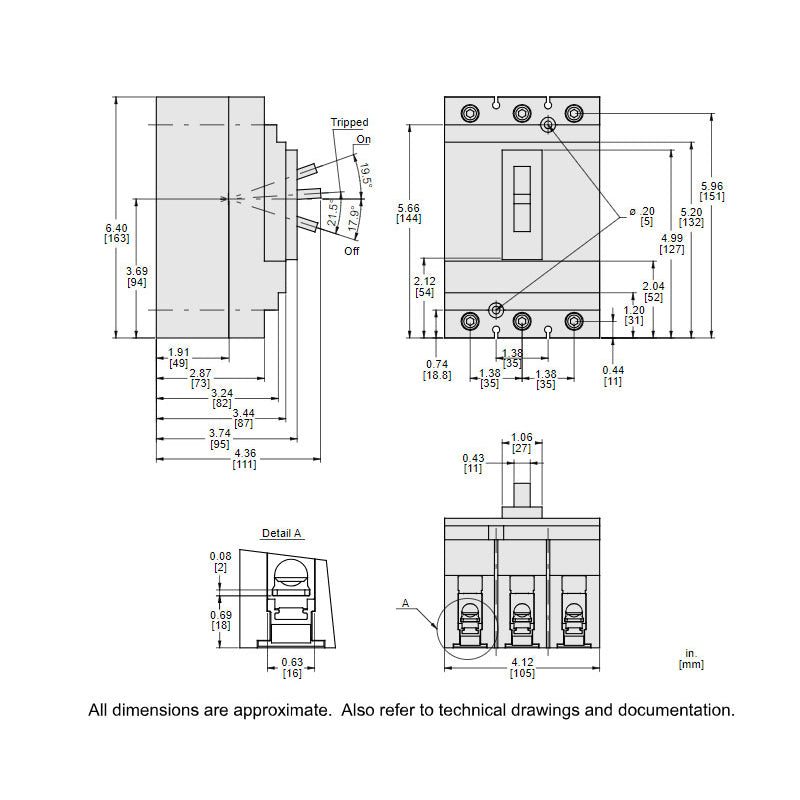

Dimensions

  • Dimensions (HxWxD):

    6.4" x 4.12" x 4.36"

  • Weight:

    1.88 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    60 A

  • Mounting Mode:

    Unit mount lug

  • Breaking Capacity Code

    D

  • Electrical Connection:

    Lugs line / Lugs load

  • Magnetic Hold Current:

    800 A

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HDL36060 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type HDL, 3P, 3PH, 60A, 600V, 18kA@480V, standard interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
