Product Specifications - EJB24020 - Square D Bolt-On Circuit Breaker

Dimensions

Standards

Additional Details

Product Description - EJB24020 - Square D Bolt-On Circuit Breaker

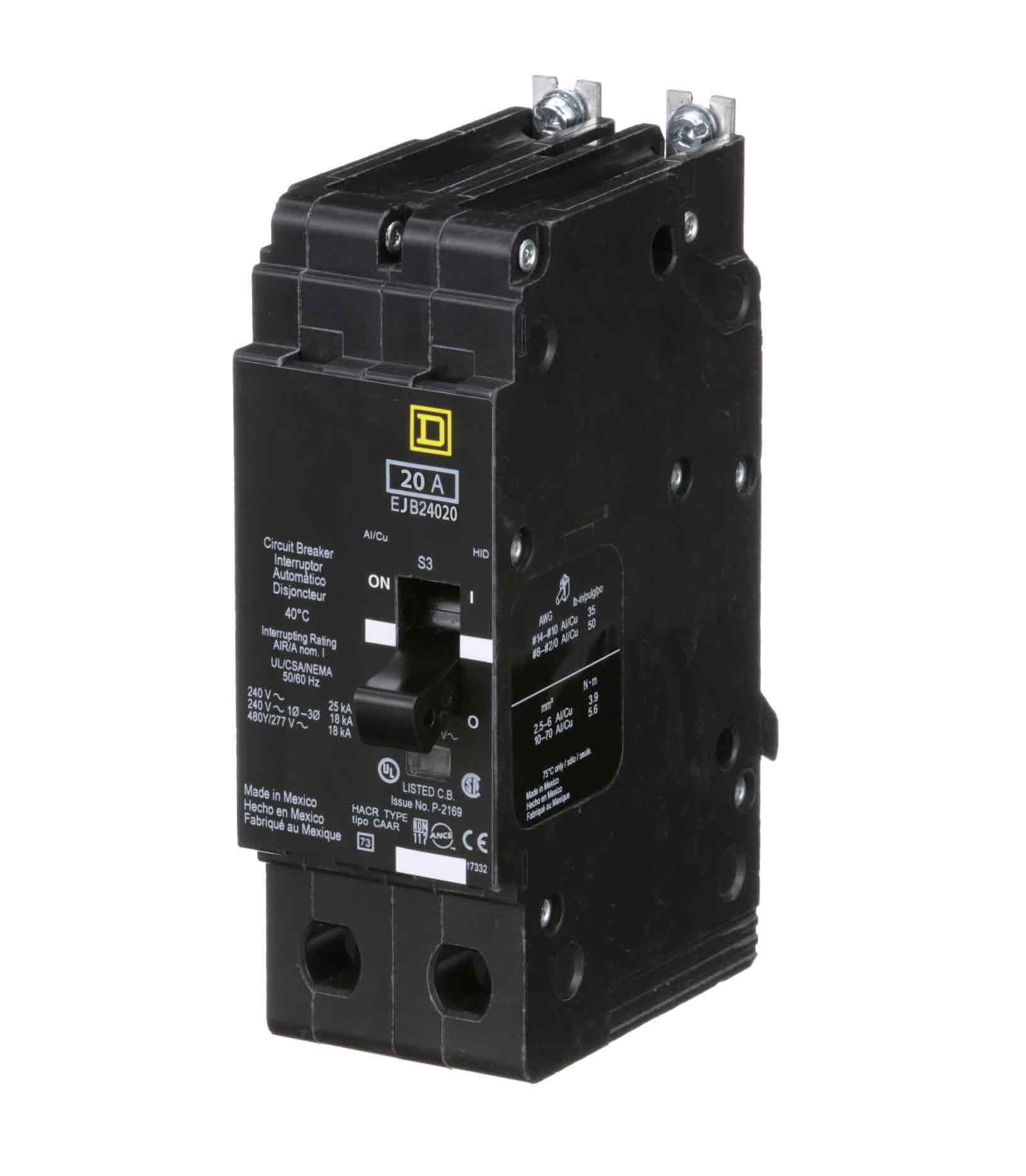

Schneider Electric / Square D's EJB24020 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.

The EJB24020 is a 2-pole bolt-on circuit breaker, rated at 20A at a system voltage of 480Y/277V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

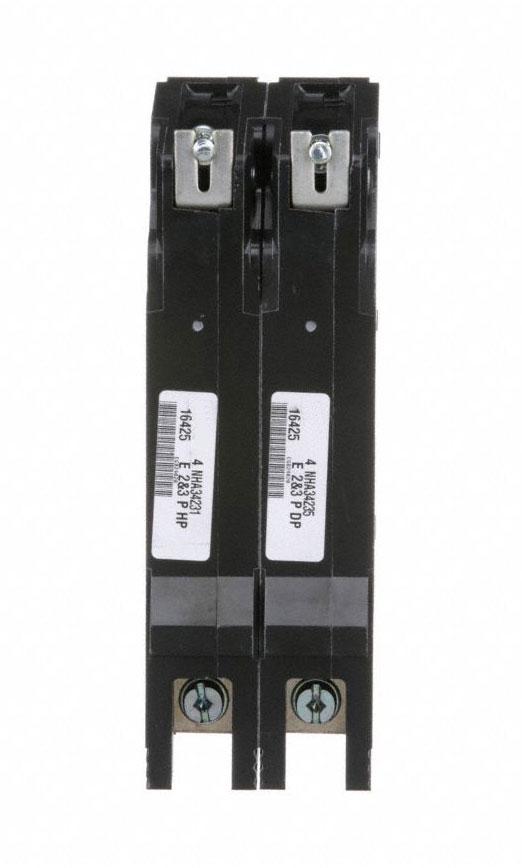

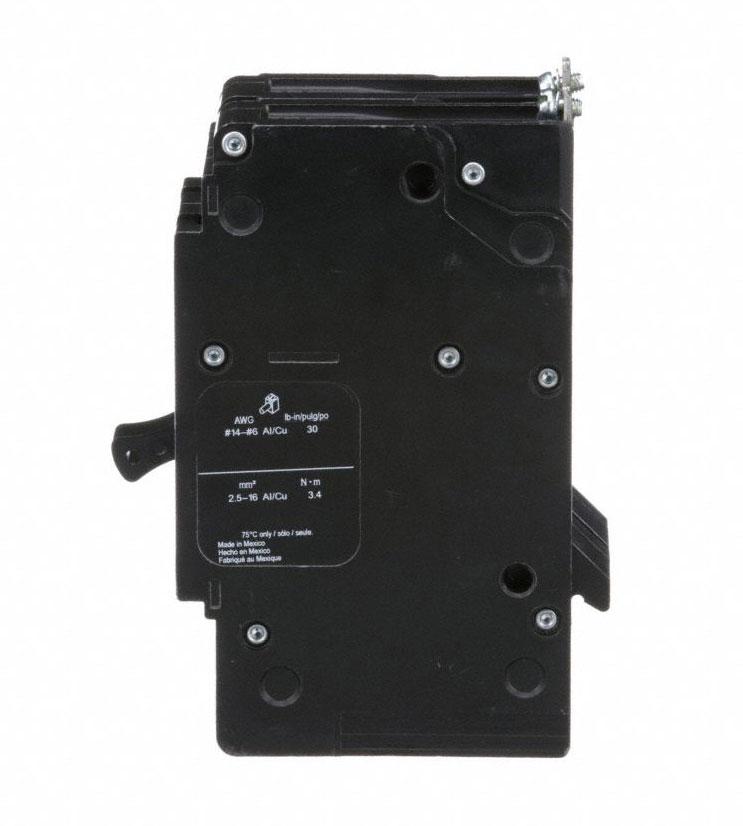

Square D's EJB24020 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12...AWG 6 (aluminum) and AWG 14...AWG 6 (copper).
