Name: EDB24100 - Square D - Molded Case Circuit Breaker
Brand: Circuitbreakersrus
Price: 279.99 USD
Availability:  instock

Home 2 Pole EDB24100 - Square D - Molded Case Circuit Breaker

2 Pole

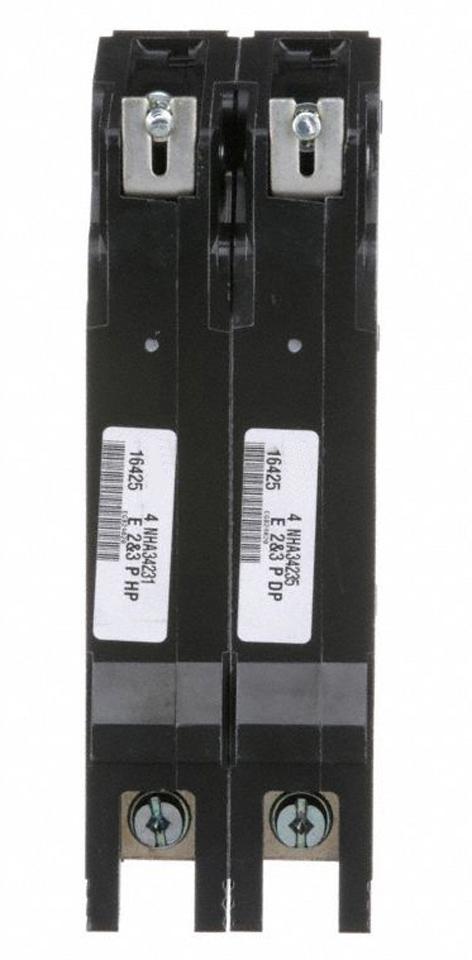

EDB24100 - Square D - Molded Case Circuit Breaker

$279.99 $756.00

Condition: New

Product variants

Quantity

Sku:

EDB24100

Category:

2 Pole

Tag:

Brand_ Square D ,

Breaker_ 2 Pole

Vendor:

Circuitbreakersrus

Type:

Molded Case Circuit Breaker

Overview

Product Specifications - EDB24100 - Square D Bolt-On Circuit Breaker

Part Number:

EDB24100
Manufacturer:

Schneider Electric / Square D
Family:

EDB Series
Pole:

2
Amp

100
Volt:

480
Phase:

1

Category:

Molded Case / 2-Pole
Connection:

Bolt-On
Type:

EDB
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

18kA@480V | 18kA@277V | 25kA@240V | 25kA@120V

Dimensions

Dimensions (HxWxD):

5.66" x 1.96" x 4.05"

Weight:

4lbs

Standards

Additional Details

Protection Type:

Short-Circuit / Overload
Module Type:

E-Frame
Trip Unit Rating:

875 Amp
Line Rated Current:

100 Amp
Maximum Operating Voltage:

480Y/277 V AC
Mounting Mode:

Bolt-On

Product Destination:

Square D NF Panelboard
Electrical Connection:

Aluminum Lugs
Holding Current:

270 Amp
Local Signaling:

Trip Indicator
Circuit Breaker Application:

HID-Rated / HACR-Rated
AWG Gauge:

AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper

Product Description - EDB24100 - Square D Bolt-On Circuit Breaker

Schneider Electric / Square D's EDB24100 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.

The EDB24100 is a 2-pole bolt-on circuit breaker, rated at 100A at a system voltage of 480Y/277V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

Square D's EDB24100 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12...AWG 6 (aluminum) and AWG 14...AWG 6 (copper).

Order Processing

Orders are processed within 1–2 business days after payment confirmation.
Orders placed on weekends or holidays will be processed the next business day.

Shipping Methods & Timeframes

We offer domestic and international shipping through trusted carriers (e.g., UPS, FedEx, USPS, DHL), depending on your location and selected method at checkout.

Shipping TypeEstimated Delivery TimeStandard Shipping3–7 business daysExpedited Shipping1–3 business daysInternational7–14 business days

Note: Delivery times may vary based on destination, customs delays, or carrier capacity.

Shopping cart

Subtotal

Login here

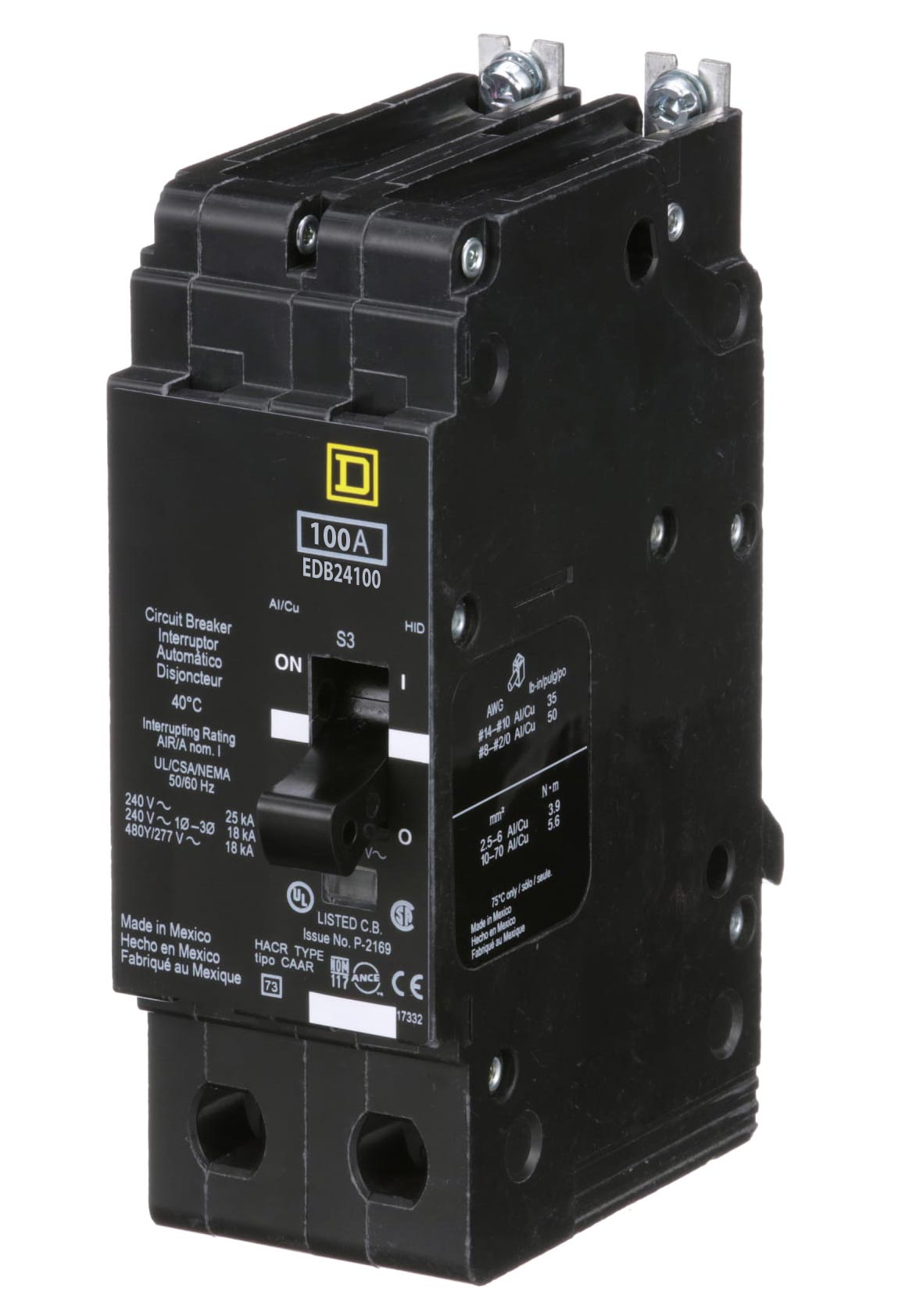

EDB24100 - Square D - Molded Case Circuit Breaker
