Overview

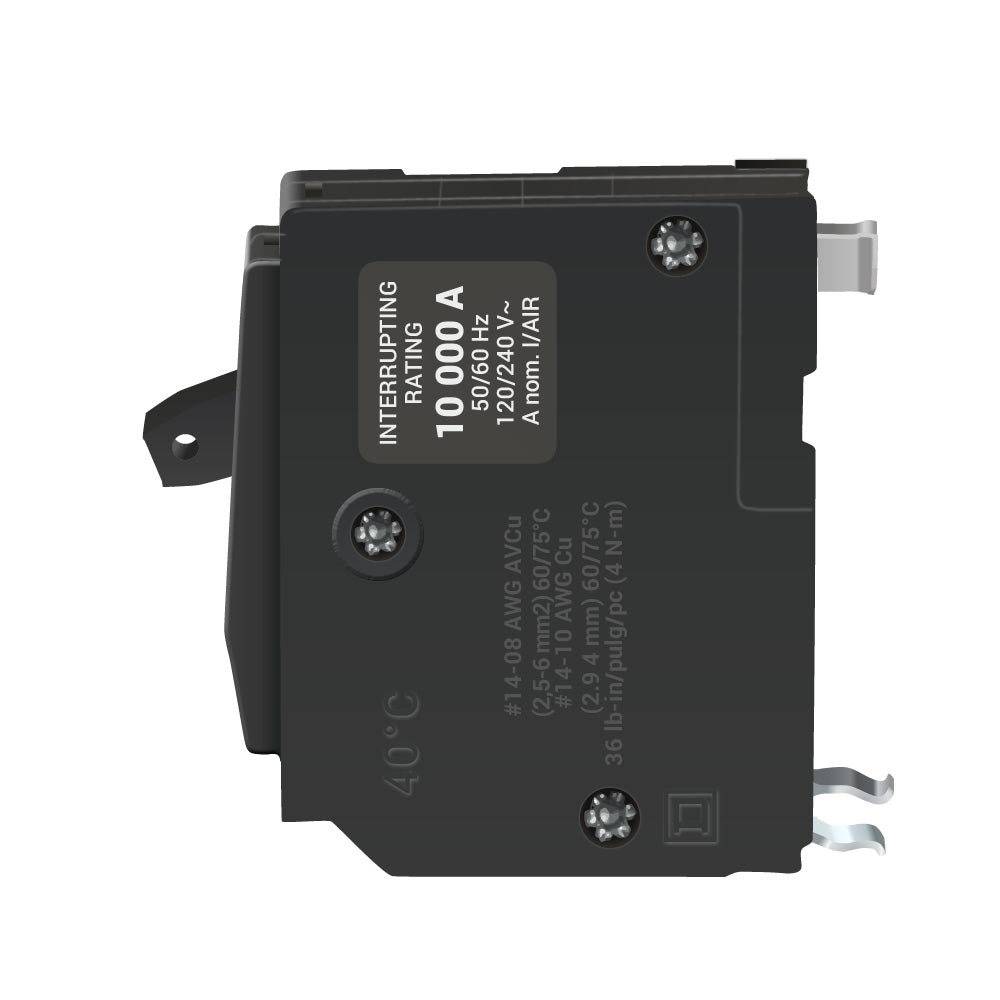

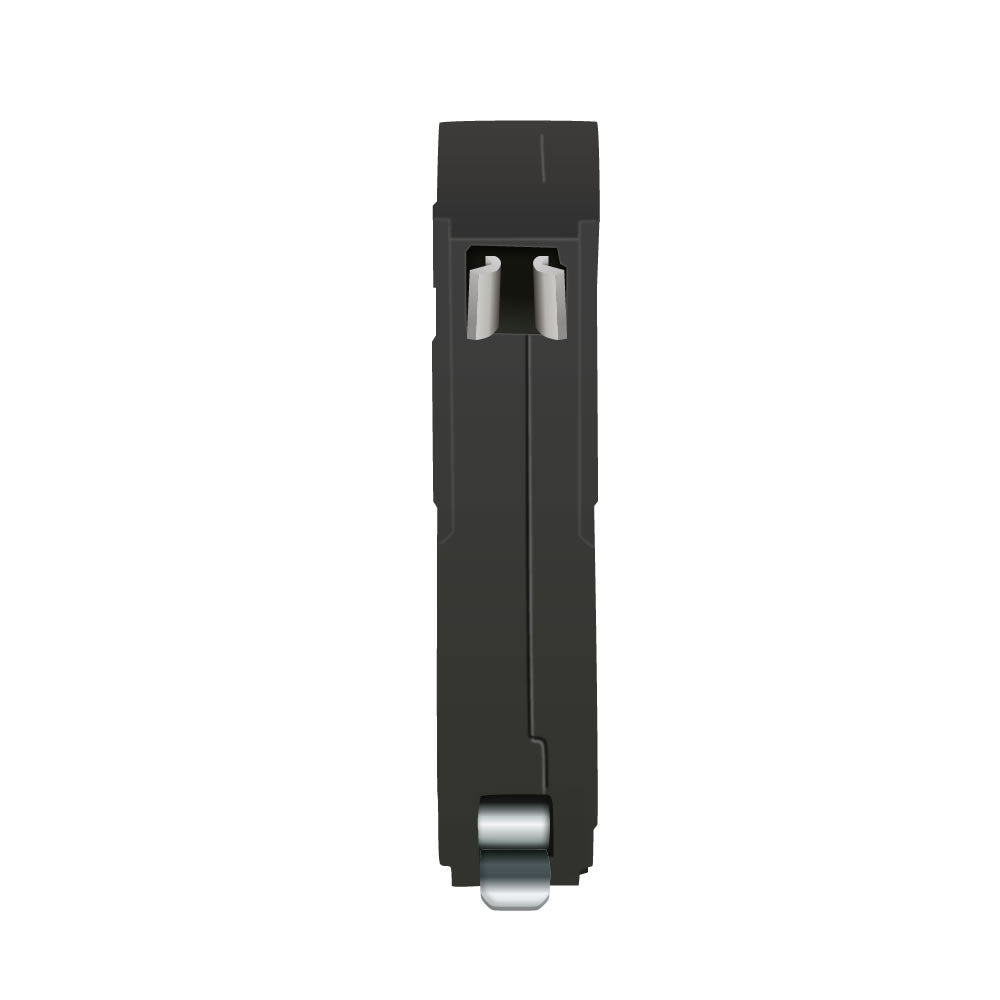

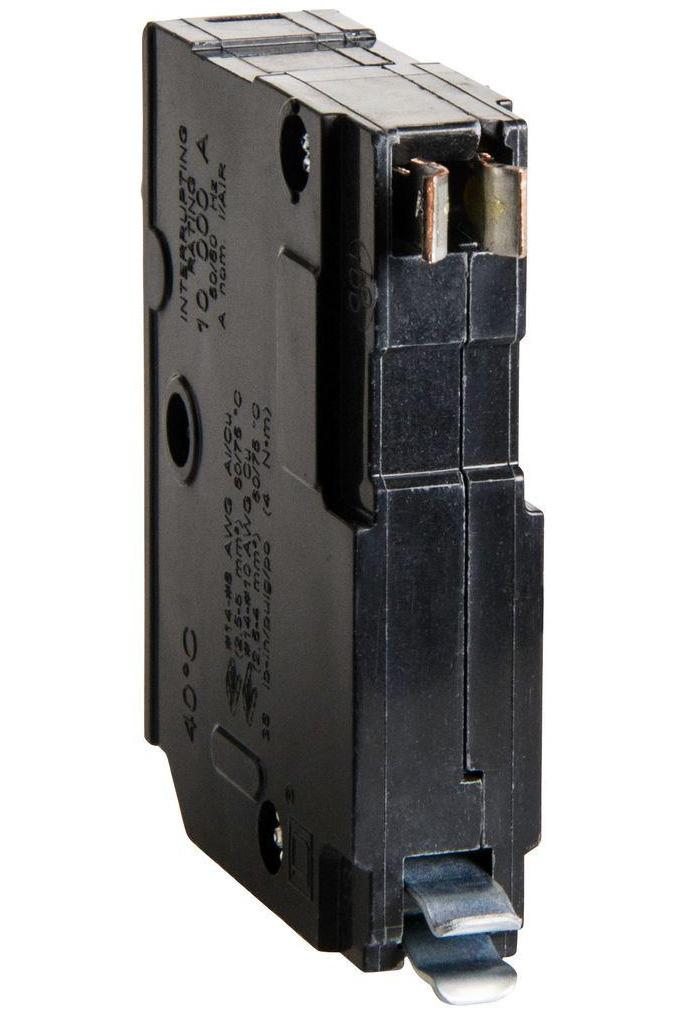

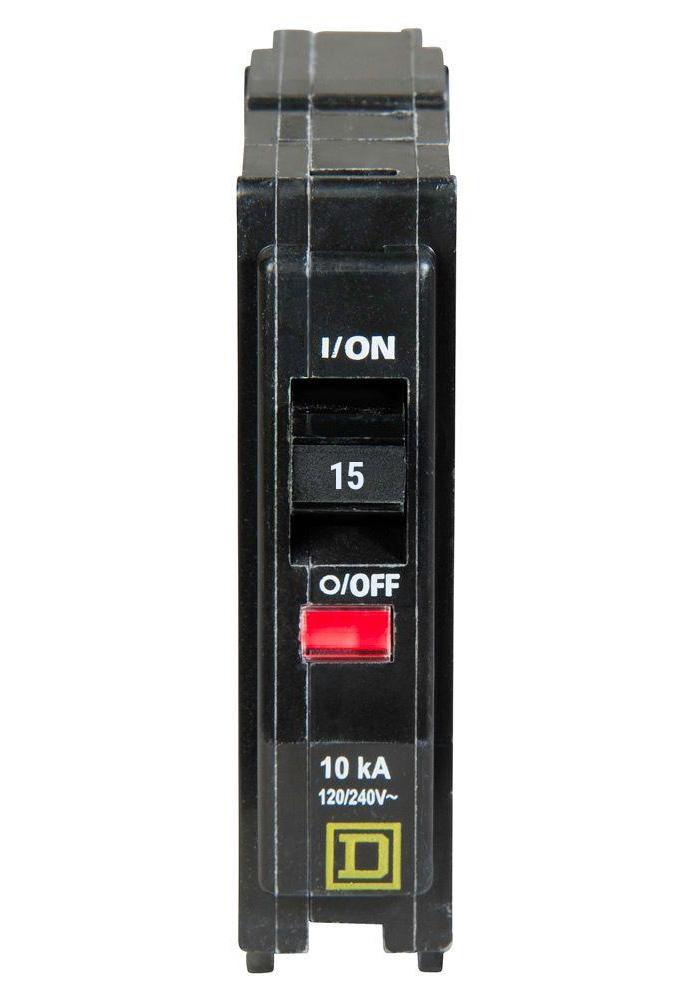

Product Specifications - QO115 - Square D 15 Amp Circuit Breaker

Dimensions

Standards

Product Description - QO115 - Square D 15 Amp Circuit Breaker

QO Circuit Breakers provide the high level of protection you expect from Square D. When it comes to electrical protection, fast response is critical and QO Circuit Breakers can trip faster than the blink of an eye.

QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and is plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Alt Model: q0115
